> >>>TOA F2352CEN 5" 2-WAY 25V/70V/100V LINE 30W IP21C 8 OHM CEILING SPEAKER WHITE

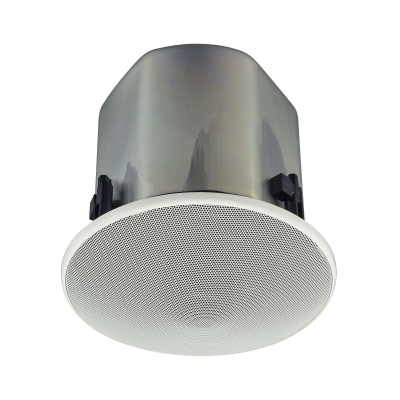

TOA F2352CEN 5" 30W CEILING MOUNTED CONE SPEAKER WHITE View larger

TOA

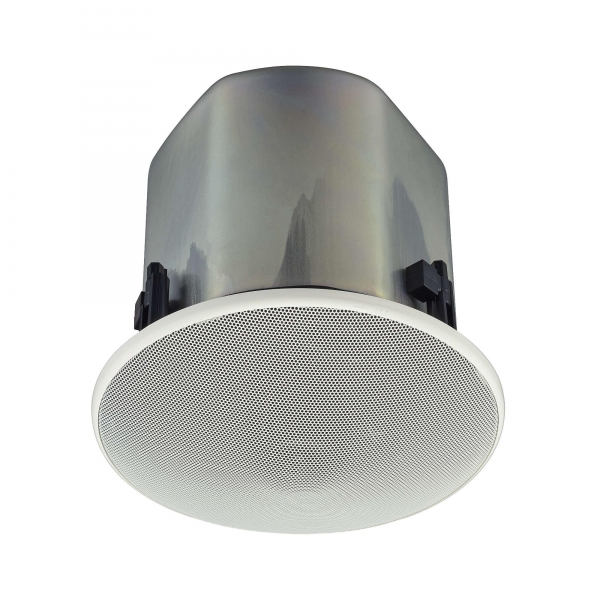

TOA F2352CEN 5" 2-WAY 25V/70V/100V LINE 30W IP21C 8 OHM CEILING SPEAKER WHITE

TOAF2352CEN

F2352CEN

New product

Balcatta: 0
Geebung: 0

TOAF2352CEN TOA F-2352CEN Q EN 54-24 Ceiling Speaker - 30 W White

The TOA F-2352CEN Q is a wide-dispersion ceiling speaker certified in accordance with EN 54-24:2008 under Declaration of Performance 20-001. Its bass-reflex enclosure combines a 12 cm cone low-frequency driver with a balanced-dome high-frequency driver, providing a 70 Hz to 20 kHz frequency response and broad, even sound coverage.

Rated at 30 W for high-impedance operation, the speaker supports 25 V, 70 V and 100 V line systems as well as direct 8 Ω use. Its plated steel enclosure, fire-resistant ABS baffle and IP21C protection support operation from -10 °C to 50 °C, using a Ø200 mm mounting opening in ceilings up to 37 mm thick.

Key Features

  • Helps distribute announcements uniformly through exceptionally wide horizontal and vertical coverage
  • Accommodates common distributed-line voltages and direct low-impedance amplification in one model
  • Maintains balanced reproduction through dedicated low- and high-frequency driver sections
  • Creates a clean ceiling appearance with a white-painted rim and steel grille
  • Simplifies installation planning with a defined cut-out and ceiling-thickness allowance
  • Colour White
  • Impedance 8 ohm
  • IP Rating IP21C
  • Sensitivity 90 dB
  • Warranty 3 Years
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config 2-WAY
  • Driver Size 5"
  • Power Type 25V/70V/100V Line
  • Mount Type CEILING MOUNTED
  • SPL (DB) 90
  • Dispersion Angle 199H X 152V; 153H X 166V
  • Input Connector REMOVABLE LOCKING CONNECTOR WITH SCREW-DOWN TERMINALS
  • Weight (kg) 3.7 KG
  • HF Driver Size 1"
  • LF Driver Size 4.72"
  • Enclosure BASS REFLEX
  • Max SPL (dB) 101 DB
  • Hertz 70-20000HZ (-10dB)
  • Max Wattage 30W
  • Max 100V Tap (W) 30W
  • 100V Taps List 30W; 10W; 3W; 1W
  • Max 70V Tap (W) 30W
  • 70V Taps List 30W; 15W; 5W; 1.5W; 0.5W
  • Pair SINGLE
  • Dia (mm) 230
  • Program Power (W) 120W
  • Series F-2352CEN Q
