> >>>TOA F2322C 5" FULL RANGE 25V/70V/100V LINE 30W 8 OHM WALL/CEILING MOUNT CONE SPEAKER WHITE

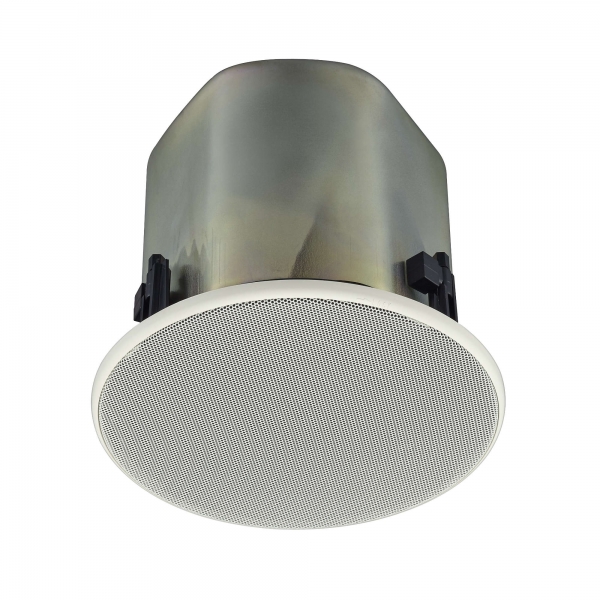

TOA F2322C FULL RANGE 30W CONE SPEAKER WHITE View larger

TOA

TOA F2322C 5" FULL RANGE 25V/70V/100V LINE 30W 8 OHM WALL/CEILING MOUNT CONE SPEAKER WHITE

TOAF2322C

F2322C

New product

Balcatta: 0
Geebung: 0

TOAF2322C TOA F-2322C Wide Dispersion Ceiling Speaker - 30 W White

The TOA F-2322C is a wide-dispersion ceiling and wall-mounted speaker designed to deliver consistent, well-balanced sound across broad listening areas. Its ported bass-reflex enclosure houses a 12 cm full-range cone driver with a 70 Hz to 20 kHz frequency response and 90 dB sensitivity, supporting voice paging and background music in spaces with ceiling heights from 2 m to 4 m.

Built-in transformer taps support 25 V, 70 V and 100 V distributed speaker lines, while direct 8 Ω operation provides low-impedance flexibility. The plated steel enclosure, fire-resistant ABS baffle, overload protection and white steel grille suit permanent installations requiring a Ø200 mm ceiling cut-out and ceiling thickness of up to 37 mm.

Key Features

  • Helps maintain consistent listening levels across large areas through extra-wide sound distribution
  • Combines clear paging and balanced music reproduction in one full-range overhead speaker
  • Matches medium-height rooms with coverage designed for ceilings from 2 m to 4 m
  • Adapts to distributed line systems or local low-impedance amplification for flexible specification
  • Protects the speaker from excessive input power through built-in overload protection circuitry
  • Colour White
  • Impedance 8 ohm
  • Sensitivity 90 dB
  • Warranty 3 Years
  • PRODUCT TYPE CONE SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config FULL RANGE
  • Driver Size 5"
  • Power Type 25V/70V/100V Line
  • Mount Type WALL/CEILING MOUNT
  • SPL (DB) 90
  • Input Connector REMOVABLE LOCKING CONNECTOR WITH SCREW-DOWN TERMINALS
  • Weight (kg) 3.7 KG
  • Enclosure BASS REFLEX
  • Hertz 70-20000HZ (-10dB)
  • Max Wattage 30W
  • Max 100V Tap (W) 30W
  • 100V Taps List 30W; 10W; 3W; 1W
  • Max 70V Tap (W) 30W
  • 70V Taps List 30W; 15W; 5W; 1.5W; 0.5W
  • Pair SINGLE
  • Dia (mm) 230
  • Program Power (W) 120W
  • Series F-2322C
