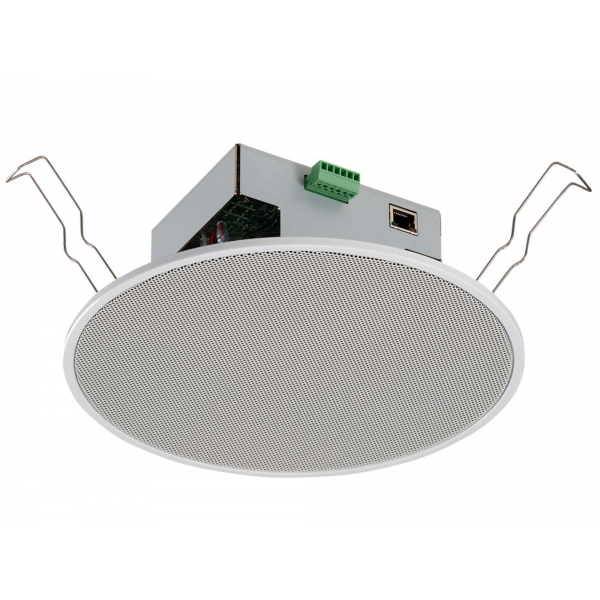

TOAIPA1PC238 TOA IP-A1PC238 PoE IP Ceiling Speaker - 8 W White

The TOA IP-A1PC238 is a PoE-powered IP ceiling speaker combining a 16 cm full-range cone driver with an integrated 8 W Class D amplifier. SIP, ONVIF and 20 multicast ports support VoIP messaging, compatible video-management broadcasts and group paging, with a 60 Hz to 20 kHz frequency response and maximum output of 103 dB SPL at 1 m.

Internal storage holds up to 20 WAV or MP3 audio files within an 80 MB capacity for scheduled, repeated or externally triggered playback. Browser-based remote setup, HTTP/HTTPS commands, two control inputs and one control output support wider automation, while spring-clamp mounting fits ceiling panels from 5 mm to 25 mm thick through a Ø200 mm opening.

Key Features

  • Reduces installation cabling by carrying power and network audio over one PoE connection
  • Connects SIP paging and ONVIF-enabled video-management workflows within one ceiling speaker
  • Supports group announcements across up to 20 multicast paging ports
  • Automates recurring or event-driven messages through timers, repeat programmes and external triggers
  • Speeds in-ceiling fitting through pre-mounted spring clamps and a compact metal assembly
  • Colour White
  • Sensitivity 94 dB
  • Warranty 3 Years
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Config FULL RANGE
  • Driver Size 6"
  • Power Type POE POWERED
  • Mount Type CEILING MOUNTED
  • SPL (DB) 94
  • Input Connector RJ45; REMOVABLE TERMINAL BLOCK
  • Weight (kg) 0.88 KG
  • LF Driver Size 6"
  • Enclosure STEEL PLATE FRAME & STEEL NET GRILLE
  • Max SPL (dB) 103 DB
  • Hertz 60-20000HZ (-20db)
  • Max Wattage 8W
  • Amp Power (W) 8W
  • Dia (mm) 230
  • Series IP-A1
  • Network Protocol IP; TCP; UDP; TLS; HTTP; HTTPS; RTP; SRTP; RTSP; RTCP; SRTCP; ARP; ICMP; IGMPv3; NTP; SIP (RFC3261); SIPS
