> >>>TOA PC2360EN 6" PASSIVE 6W CEILING SPEAKER WHITE
TOA PC-2360EN 6W 100V 6 INCH EN54 CEILING MOUNT SPEAKER WHITE View larger

TOA

TOA PC2360EN 6" PASSIVE 6W CEILING SPEAKER WHITE

TOAPC2360EN

PC2360EN

New product

Balcatta: 0
Geebung: 0

PC-2360EN TOA 6-Inch 6 W Voice Alarm Ceiling Speaker - White

The TOA PC-2360EN is a 6-inch cone-type ceiling loudspeaker designed for indoor voice alarm, announcement and background music systems. It operates on 100 V and 70 V speaker lines, with rated inputs of 6 W and 3 W respectively, while selectable transformer settings support different system output requirements.

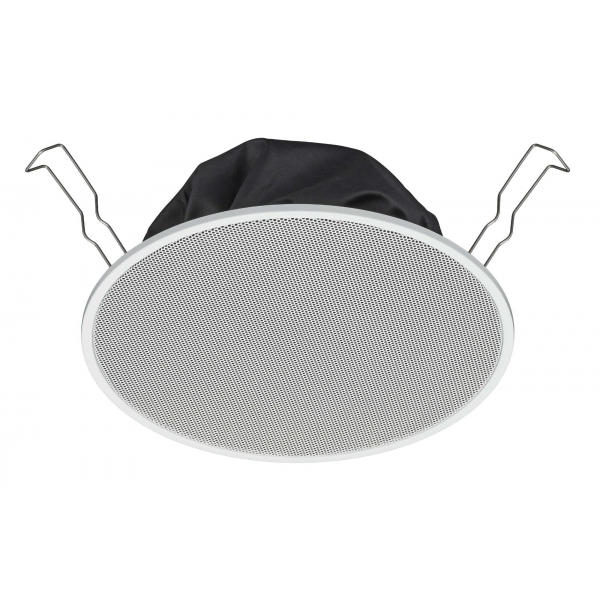

Spring-clamp mounting allows the speaker to fit a 200 ± 3 mm ceiling cut-out and ceiling panels from 5 to 25 mm thick. Its slim 76 mm-deep profile, white painted steel frame and matching steel grille provide discreet integration with surrounding architecture and interior finishes.

Key Features

  • Supports voice announcements and background music through one speaker format
  • Distributes sound across broad indoor listening areas
  • Offers flexible output adjustment for distributed speaker system design
  • Simplifies ceiling installation with a practical spring-clamp mounting system
  • Maintains a discreet appearance with a slim white circular profile
  • Colour White
  • Sensitivity 94 dB
  • Warranty 3 Years
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand TOA
  • Driver Size 6"
  • Power Type PASSIVE
  • Mount Type CEILING MOUNTED
  • Dispersion Angle 160H X 170V
  • Input Connector PUSH WIRE CONNECTION
  • Weight (kg) 0.74 KG
  • LF Driver Size 6"
  • Max SPL (dB) 99 DB
  • Hertz 60-20000HZ (-20db)
  • Max Wattage 6W
  • Max 100V Tap (W) 6W
  • 100V Taps List 0.8W; 1.5W; 3W; 6W
  • Max 70V Tap (W) 3W
  • Dia (mm) 230
