HH TNI-C6-WH TESSEN INSTALL 6.5" 2-WAY COAXIAL PASSIVE 220W 8 OHM CEILING SPEAKER WHITE

HHATNI-C6-WH

TNi-C6-WH

New product

HH ELECTRONICS TNI-C6-WH 6.5 INCH CEILING PASSIVE SPEAKER 40W 70V/100V/8OHM WHITE

More details

Balcatta: 0
Geebung: 0

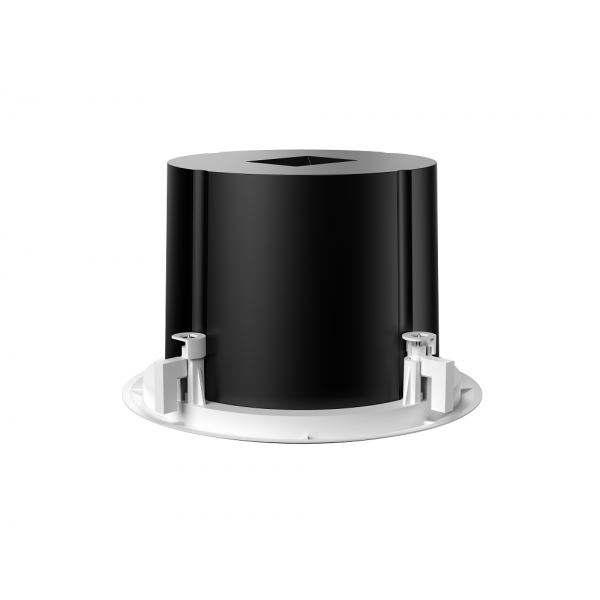

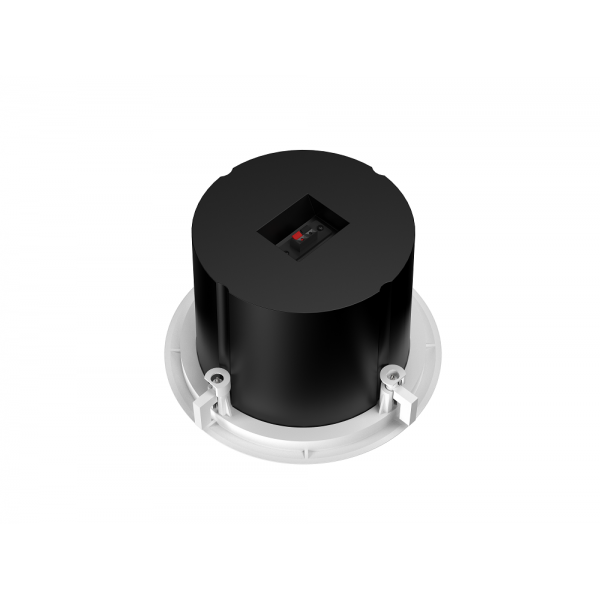

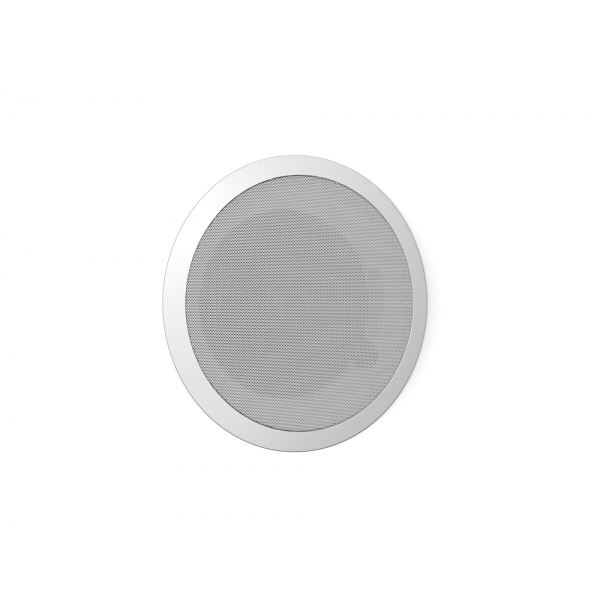

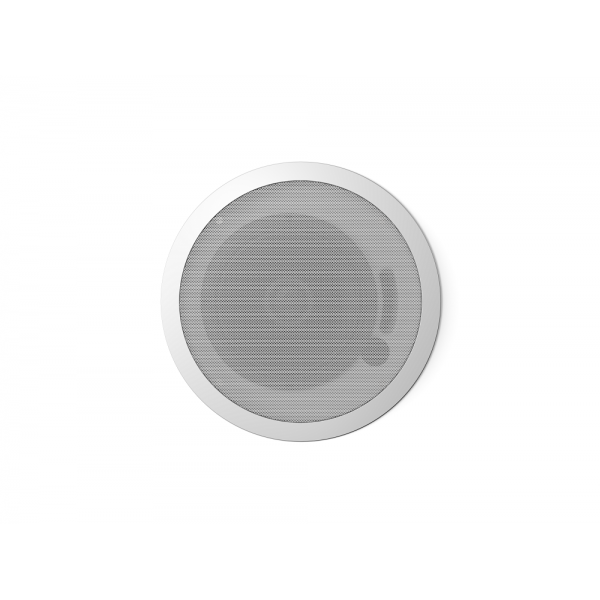

TNi-C6-WH HH 6.5 Inch Two-Way Back Can Ceiling Speaker - White 70 V 100 V or 8 Ohm

The HH TNi-C6-WH is a passive two-way bass-reflex ceiling loudspeaker with an integrated back can, 6.5-inch paper woofer and 1.5-inch neodymium tweeter. Its front selector provides 40 W, 20 W and 10 W taps for 100 V lines, 20 W, 10 W and 5 W taps for 70 V systems, or direct 8-ohm operation.

Designed for background music and spoken announcements, the speaker combines a white ABS surround and steel mesh grille with four locking dog-ear brackets. A 235 mm cutout and approximately 175 mm minimum installation depth support planned ceiling integration, while the spring terminals and front-accessible selector simplify setup.

Key Features

  • 85 Hz to 16 kHz response at -3 dB supports full-range music and voice reproduction
  • 90 dB sensitivity and 113 dB calculated maximum SPL provide efficient acoustic output
  • Wide 120° conical dispersion supports broad coverage from each ceiling position
  • 55 W AES and 220 W peak handling in 8-ohm mode support greater dynamic range with suitable amplification
  • 260 mm outside diameter and 2.1 kg weight support practical overhead handling
  • Colour White
  • Impedance 8 ohm
  • Sensitivity 90 dB
  • Warranty 2 Years
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand HH
  • Config 2-WAY COAXIAL
  • Driver Size 6.5"
  • Power Type PASSIVE
  • Mount Type CEILING MOUNTED
  • Dispersion Angle 120
  • Input Connector PUSH SPRING CONNECTORS
  • Peak Power (W) 220W
  • Weight (kg) 2.1 KG
  • HF Driver Size 1.5"
  • LF Driver Size 6.5"
  • Enclosure ABS PLASTIC
  • Max SPL (dB) 113 DB
  • Hertz 75-20000HZ
  • Max Wattage 220W
  • Max 100V Tap (W) 40W
  • 100V Taps List 40W; 20W; 10W
  • Max 70V Tap (W) 20W
  • 70V Taps List 20W; 10W; 5W
  • Series TESSEN INSTALL
