> >>>HH TNI-C8-WH TESSEN INSTALL 8" 2-WAY COAXIAL PASSIVE 260W 8 OHM CEILING SPEAKER WHITE
8" CEILING SPEAKER - 40 WATT View larger
Previous Next

HH TNI-C8-WH TESSEN INSTALL 8" 2-WAY COAXIAL PASSIVE 260W 8 OHM CEILING SPEAKER WHITE

HHATNI-C8-WH

TNi-C8-WH

New product

HH ELECTRONICS TNI-C8-WH 8 INCH CEILING PASSIVE SPEAKER 40W 70V/100V/8OHM WHITE

More details

Balcatta: 0
Geebung: 0

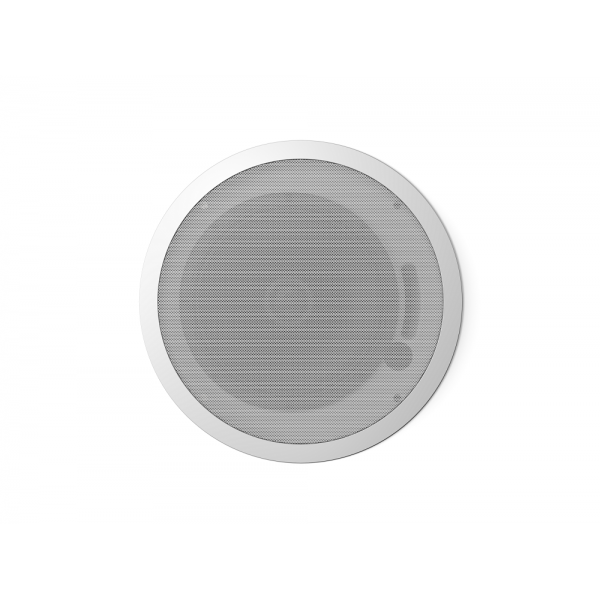

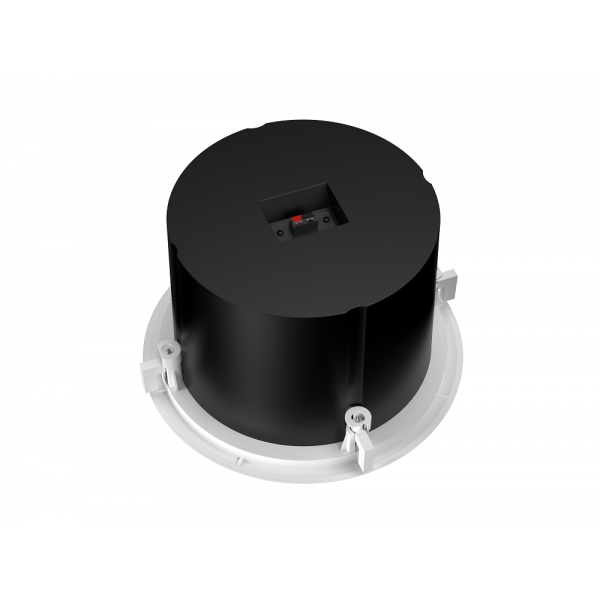

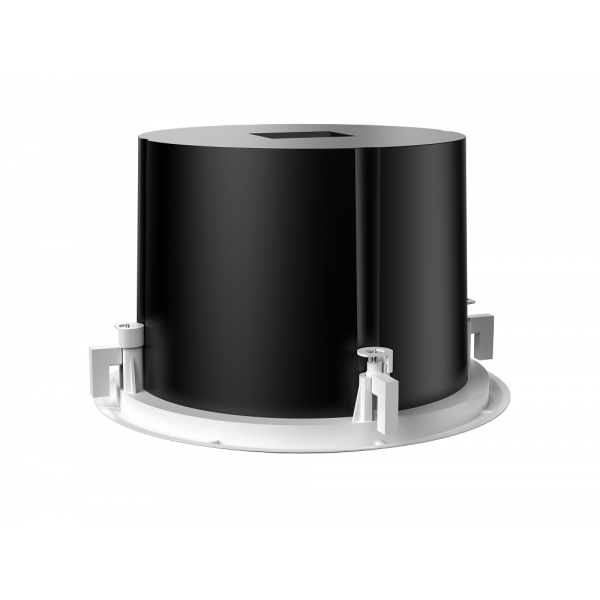

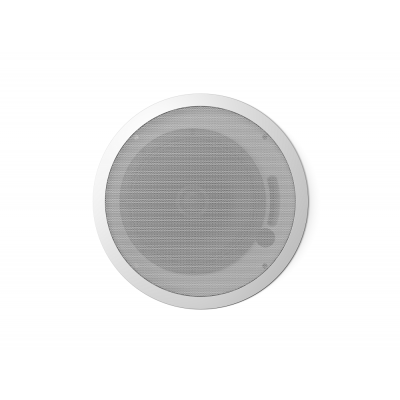

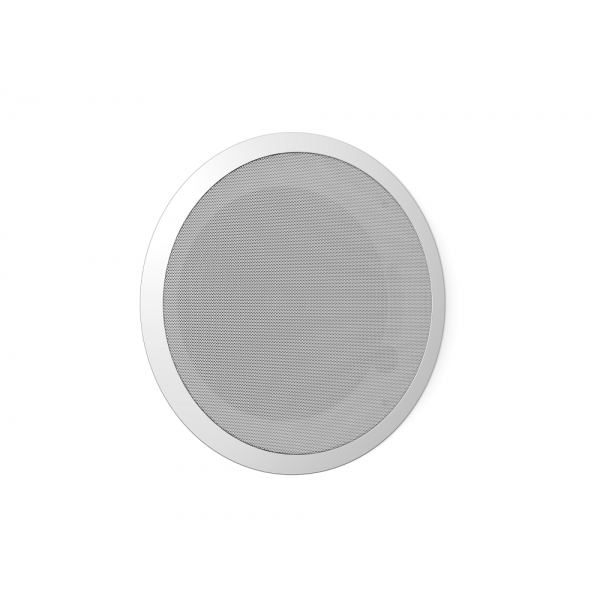

TNi-C8-WH HH 8 Inch Two-Way Back Can Ceiling Speaker - White 70 V 100 V or 8 Ohm

The HH TNi-C8-WH is a passive two-way bass-reflex ceiling loudspeaker with an integrated back can, pairing an 8-inch paper woofer with a 1.5-inch neodymium tweeter. Its front selector offers 40 W, 20 W and 10 W settings for 100 V lines, 20 W, 10 W and 5 W for 70 V systems, or direct 8-ohm operation.

Designed for distributed ceiling audio, it combines a white ABS surround and circular mesh steel grille with a 275 mm cutout and approximately 193 mm minimum installation depth. Four locking dog-ear brackets accommodate a 4-20 mm ceiling grip range for secure installation.

Key Features

  • 80 Hz to 16 kHz frequency response at -3 dB supports balanced speech and music reproduction
  • 91 dB sensitivity and 115 dB calculated maximum SPL deliver efficient ceiling-level output
  • 100° conical coverage helps distribute sound across the intended listening area
  • 65 W AES and 260 W peak handling in 8-ohm mode support higher-output low-impedance designs
  • Coaxial driver arrangement keeps bass and treble output centred at a single ceiling position
  • Colour White
  • Impedance 8 ohm
  • Sensitivity 91 db
  • Warranty 2 Years
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand HH
  • Config 2-WAY COAXIAL
  • Driver Size 8"
  • Power Type PASSIVE
  • Mount Type CEILING MOUNTED
  • Dispersion Angle 100
  • Input Connector PUSH SPRING CONNECTORS
  • Peak Power (W) 260W
  • Weight (kg) 2.6 KG
  • HF Driver Size 1.5"
  • LF Driver Size 8"
  • Enclosure ABS PLASTIC
  • Max SPL (dB) 115 DB
  • Hertz 65-20000HZ
  • Max Wattage 260W
  • Max 100V Tap (W) 40W
  • 100V Taps List 40W; 20W; 10W
  • Max 70V Tap (W) 20W
  • 70V Taps List 20W; 10W; 5W
  • Series TESSEN INSTALL
