QUEST MX4CB MX 4" 2-WAY PASSIVE 100W 16 OHM CEILING SPEAKER BLACK
QUEMX4CB
MX4CB
New product
QUEST 4" CEILING SPEAKER - 75 WATT
MX4CB Quest 4 Inch 2-Way High-Fidelity Ceiling Speaker - Black
The Quest MX4CB is a black 2-way high-fidelity in-ceiling speaker built around a 4-inch woofer and 1-inch dome tweeter. It supports 16 Ohm operation as well as selectable 70 V and 100 V transformer settings, with 104 dB maximum SPL and 160 deg x 130 deg dispersion for broad sound coverage.

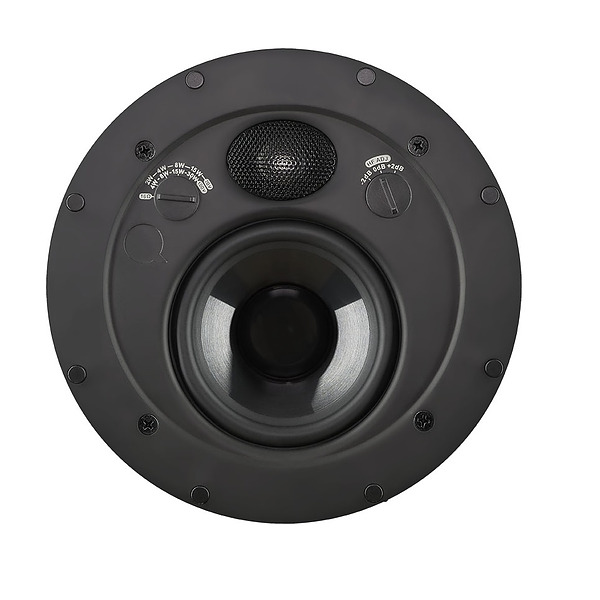

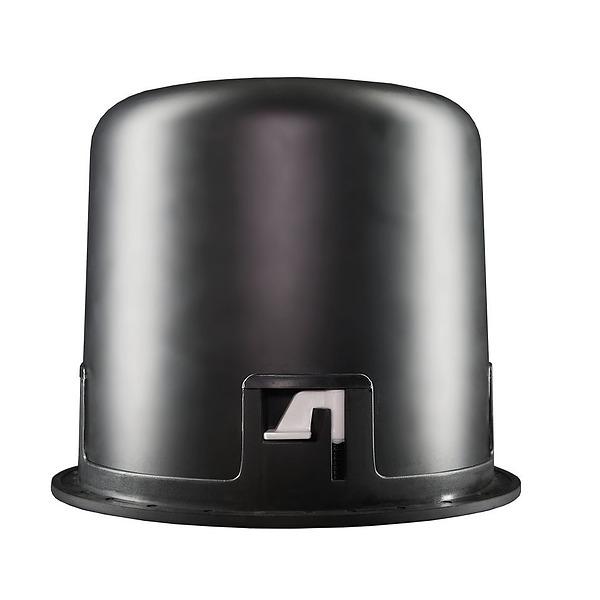

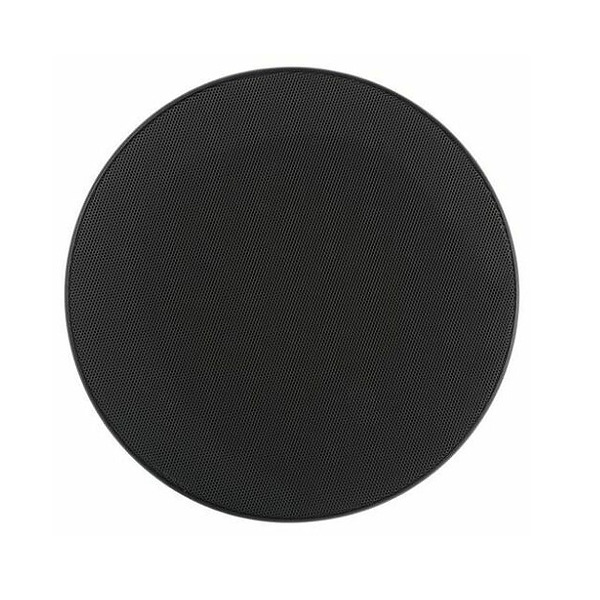

Designed for compact sound reinforcement installations, it combines a fire-resistant aluminium backcan with a removable rimless magnetic steel grille. Transformer selection and high-frequency adjustment are positioned on the front baffle beneath the grille, allowing system settings to be accessed from the room side while maintaining a clean ceiling appearance.
Key Features
- Broad dispersion supports consistent listening coverage across compact rooms
- Multiple operating modes accommodate distributed and low-impedance amplifier systems
- Room-side controls streamline commissioning and later system adjustment
- Aluminium backcan construction assists heat dissipation above the ceiling
- Rimless magnetic grille provides a discreet black architectural finish
- Colour Black
- Dimensions (H x W x D) 197 X 155mm
- Dispersion 160° x 130°
- Frequency Response 58Hz - 30kHz (-10dB)
- Impedance 16 ohm
- Maximum SPL 104dB
- Power Output 75 watt (RMS) 100 watt (Peak)
- Transformer Taps 4W, 8W, 15W, 30W
- Warranty 2 Years
- Weight 2kg
- PRODUCT TYPE CEILING SPEAKER
- Brand QUEST
- Config 2-WAY
- Driver Size 4"
- Power Type PASSIVE
- Mount Type CEILING MOUNTED
- Dispersion Angle 160H X 130V
- Weight (kg) 2 KG
- LF Driver Size 4"
- Enclosure ABS
- Max SPL (dB) 104 DB
- Hertz 58-30000HZ (-10dB)
- Max Wattage 100W
- Max 100V Tap (W) 30W
- Dia (mm) 197
- Series MX
Cut Out Dimensions
