QUEST MX4CW MX 4" 2-WAY PASSIVE 100W 16 OHM CEILING SPEAKER WHITE
QUEMX4CW
MX4CW
New product
QUEST 4" CEILING SPEAKER - 75 WATT
MX4CW Quest 4 Inch 2-Way High-Fidelity Ceiling Speaker - White

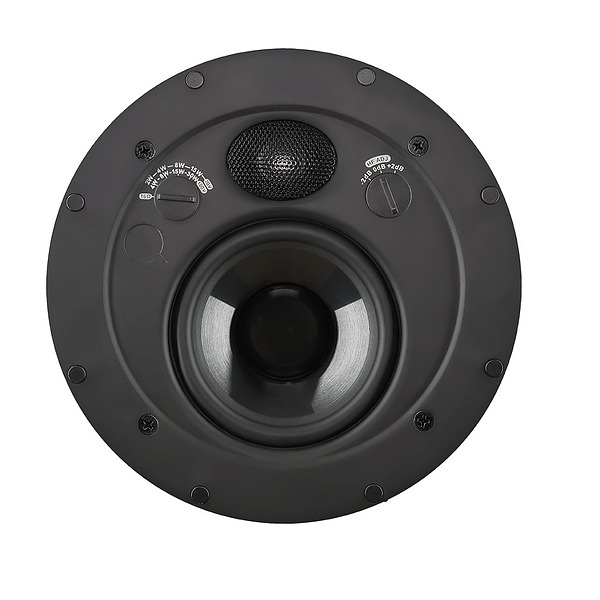

The Quest MX4CW is the white variant of the compact MX4C 2-way high-fidelity in-ceiling speaker, combining a 4-inch low-frequency driver with a 1-inch dome tweeter. It operates from 16 Ohm amplifiers or 70 V and 100 V distributed lines, with selectable transformer taps, 86 dB sensitivity, 104 dB maximum SPL and 160 deg x 130 deg dispersion.

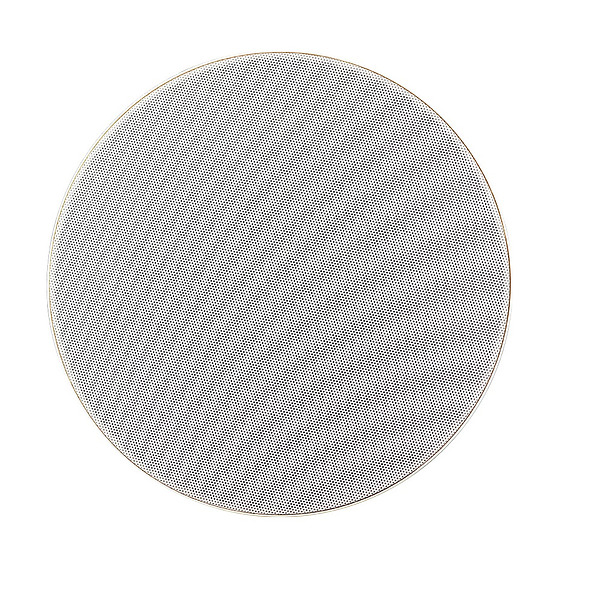

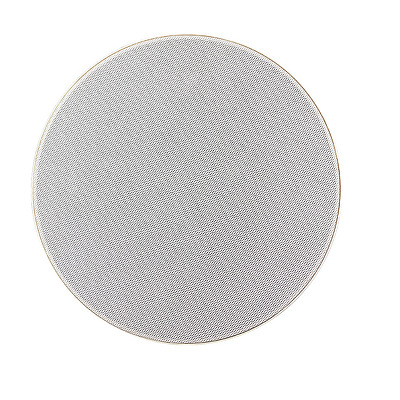

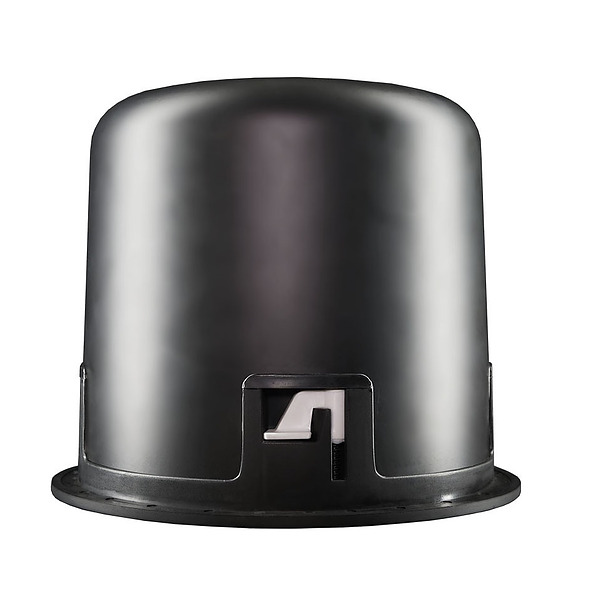

A fire-resistant aluminium backcan and removable rimless powder-coated steel grille suit clean architectural installations. Front-baffle system selection and high-frequency adjustment remain accessible behind the magnetic grille, helping installers commission or refine the speaker from the room side after mounting.
Key Features
- High-fidelity 2-way design supports balanced installed sound
- Wide coverage pattern promotes consistent listening levels across compact rooms
- Multiple operating modes suit distributed and low-impedance amplifier layouts
- Front-access adjustments simplify post-installation system tuning
- White rimless grille blends neatly with light-coloured ceiling finishes
- Colour White
- Dimensions (H x W x D) 197 X 155mm
- Dispersion 160° x 130°
- Frequency Response 58Hz - 30kHz (-10dB)
- Impedance 16 ohm
- Maximum SPL 104dB
- Power Output 75 watt (RMS) 100 watt (Peak)
- Transformer Taps 4W, 8W, 15W, 30W
- Warranty 2 Years
- Weight 2kg
- PRODUCT TYPE CEILING SPEAKER
- Brand QUEST
- Config 2-WAY
- Driver Size 4"
- Power Type PASSIVE
- Mount Type CEILING MOUNTED
- Dispersion Angle 160H X 130V
- Weight (kg) 2 KG
- LF Driver Size 4"
- Max SPL (dB) 104 DB
- Hertz 58-30000HZ (-10dB)
- Max Wattage 100W
- Max 100V Tap (W) 30W
- Dia (mm) 197
- Series MX
Cut Out Dimensions
