QUEST QTC2080I 6" 65W 16 OHM CEILING SPEAKER
QUEQTC2080I
QTC2080I
New product

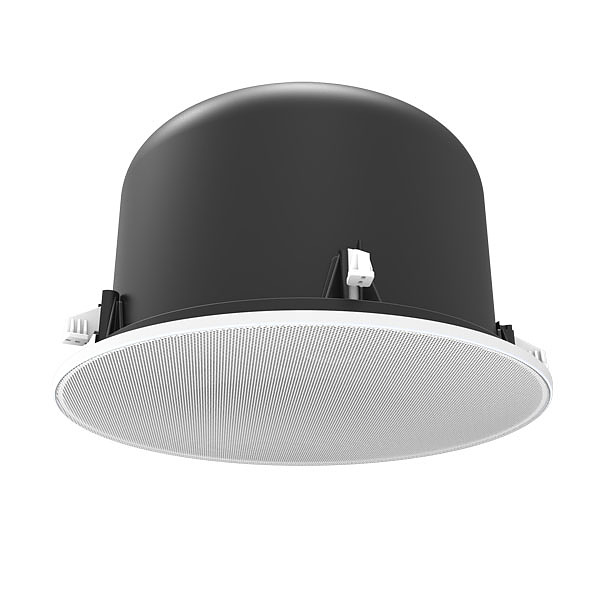

QTC2080I Quest 6 Inch Passive Ceiling Speaker - 65 W RMS 100 V or 16 Ohm
The Quest QTC2080I is a 6-inch passive ceiling speaker using a neodymium woofer, with a stated 90 Hz to 20 kHz frequency response and 90 dB sensitivity at 1 W/1 m. Its transformer supports 100 V distributed-audio operation or direct 16-ohm connection, allowing the same model to suit different ceiling speaker system designs.

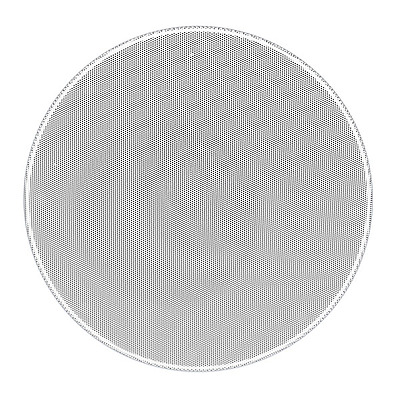

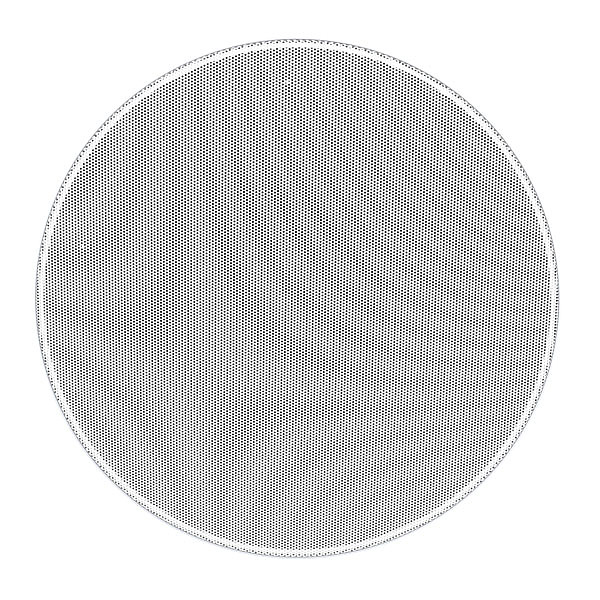

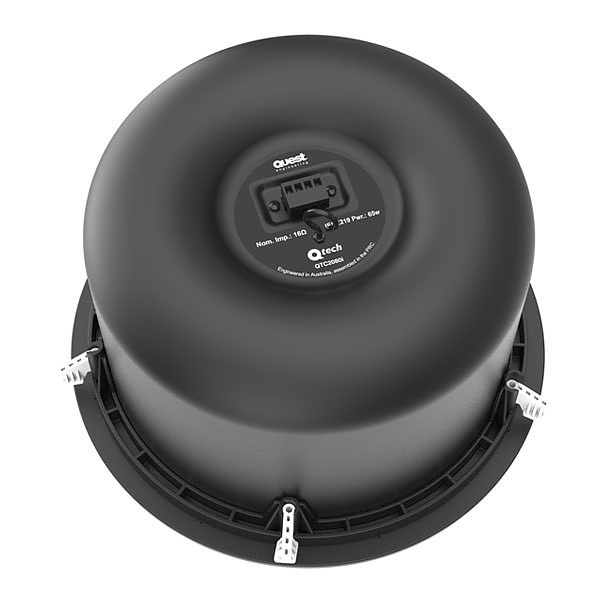

An aluminium back can encloses the assembly, while the magnetic grille gives it a clean, seamless ceiling finish. The speaker requires a 254 mm cutout and measures 276 mm wide by 160 mm deep, providing clear dimensions for installation planning.
Key Features

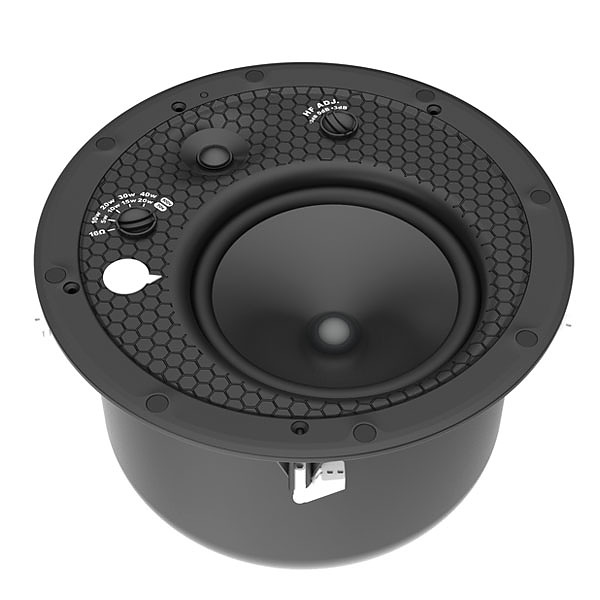

- Selectable transformer taps simplify level balancing across multi-speaker installations
- High-frequency adjustment enables local tonal fine-tuning for the installed environment
- Broad frequency response accommodates a wide range of programme material
- Recessed ceiling placement preserves usable wall and floor space
- Low 2.6 kg net weight supports practical handling during overhead installation
- Colour White
- Dimensions (H x W x D) 276 x 160 mm (W x D)
- Frequency Response 90 - 20 KHz
- Impedance 16 ohm
- Material Fire resistant plastic vented enclosure + metal grill
- Maximum SPL 105dB
- Power Rating 65 watt (RMS)
- Sensitivity 90 dB
- Transformer Taps 40w, 30w, 20w and 10w
- Warranty 3 Years
- Weight 2.6 kg
- PRODUCT TYPE CEILING SPEAKER
- COLOR WHITE
- Brand QUEST
- Driver Size 6"
- Mount Type CEILING MOUNTED
- Weight (kg) 2.6 KG
- LF Driver Size 6"
- Enclosure ALUMINUM
- Max SPL (dB) 105 DB
- Hertz 90-20000HZ
- Max Wattage 65W
Data Sheet
30 other products in the same category:
-
HHAAPT-P6-BK
APT-P6-BKHH APT-P6-BK APTUR 6.5" 2-WAY PASSIVE 480W 8 OHM PENDANT SPEAKER BLACK
-
HHAAPT-P6-WH
APT-P6-WHHH APT-P6-WH APTUR 6.5" 2-WAY PASSIVE 480W 8 OHM PENDANT SPEAKER WHITE
-
HHAAPT-TB8
APT-TB8HH APT-TB8 TILE BRIDGE FOR 8 INCH CEILING SPEAKERS SET OF 4 BLACK
-
HHAAPT-TB6
APT-TB6HH APT-TB6 TILE BRIDGE FOR 6.5 INCH CEILING SPEAKERS SET OF 4 BLACK
-
HHAAPT-TB4
APT-TB4HH APT-TB4 TILE BRIDGE FOR 4 INCH CEILING SPEAKERS SET OF 4 BLACK
-
HHAAPT-CG8
APT-CG8HH APT-CG8 8 INCH CEILING SPEAKER GRILLES BLACK SET OF 4
-
HHAAPT-CG6
APT-CG6HH APT-CG6 6.5 INCH CEILING SPEAKER GRILLES SET OF 4 BLACK
-
HHAAPT-CG4
APT-CG4HH APT-CG4 4 INCH CEILING SPEAKER GRILLES SET OF 4 BLACK
-
ELEEVID-EC8.2
EVL-EVID-EC8.2ELECTROVOICE EVL-EVID-EC8.2 EVID-EC 8" 2-WAY COAXIAL 100V LINE 30W...
-
ELEEVID-EC6.2E
EVL-EVID-EC6.2EELECTROVOICE EVL-EVID-EC6.2E EVID-EC 6.5" 2-WAY COAXIAL 100V LINE...
-
ELEEVID-EC6.2
EVL-EVID-EC6.2ELECTROVOICE EVL-EVID-EC6.2 EVID-EC 6.5" 2-WAY COAXIAL 100V LINE...
-
ELEEVID-EC4.2
EVL-EVID-EC4.2ELECTROVOICE EVL-EVID-EC4.2 4" 2-WAY COAXIAL 100V LINE 20W IP34 8...
-
ELEEVID-EC3.1
EVL-EVID-EC3.1ELECTROVOICE EVL-EVID-EC3.1 3" 100V LINE 15W IP45 8 OHM CEILING...
-
ELEEVID-C8.2HC-G2
EVL-EVID-C8.2HC-G2ELECTROVOICE EVL-EVID-C8.2HC-G2 8" 2-WAY COAXIAL 100V LINE 90W IP34...
-
ELEEVID-C8.2-G2
EVL-EVID-C8.2-G2ELECTROVOICE EVL-EVID-C8.2-G2 8" 2-WAY COAXIAL 100V LINE 60W IP34 8...
-
ELEEVID-C8.1S-G2
EVL-EVID-C8.1S-G2ELECTRO-VOICE EVID-C8.1S-G2 8 INCH CEILING SUBWOOFER 70/100V (PAIR)...
-
ELEEVID-C6.2LP-G2
EVL-EVID-C6.2LP-G2ELECTROVOICE EVL-EVID-C6.2LP-G2 6.5" COAXIAL 100V LINE 30W IP34 8...
-
ELEEVID-C6.2-G2
EVL-EVID-C6.2-G2ELECTROVOICE EVL-EVID-C6.2-G2 6.5" COAXIAL 100V LINE 30W IP34 8 OHM...
-
ELEEVID-C4.2LP-G2
EVL-EVID-C4.2LP-G2ELECTROVOICE EVL-EVID-C4.2LP-G2 4" COAXIAL 100V LINE 30W IP34 8 OHM...
-
ELEEVID-C4.2-G2
EVL-EVID-C4.2-G2ELECTROVOICE EVL-EVID-C4.2-G2 4" COAXIAL 100V LINE 30W IP34 8 OHM...
-
BOSLBC-3951/12
LBC-3951/12BOSCH LBC3951/12 WEATHER RESISTANT 4 INCH PASSIVE LOUDSPEAKER...
-
QUEMX6CPOEB
MX6CPOEBQUEST MX6CPOEB MX 6" 2-WAY POE 150W CEILING SPEAKER BLACK
-
AUDCENA812I/W
AUD-CENA812I/WAUDAC AUD-CENA812I/W 8' BROADBAND 100V LINE 12W 8 OHM CEILING...
-
TOACP77

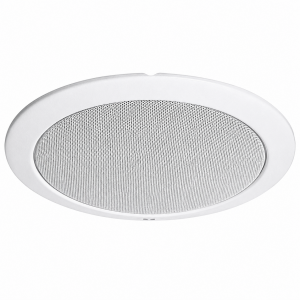

CP77 487059TOA CP-77 METAL SPEAKER GRILLE FOR CM-760 180MM X 11MM OFF-WHITE
-
TOACM960

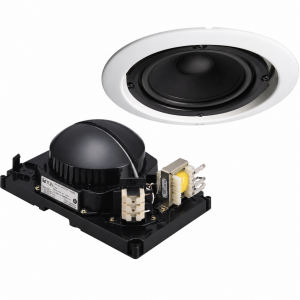

CM960TOA CM960 CM-960 5" 100V LINE 6W 1.7 K OHM FLUSH MOUNT CEILING...
-
