> >>>EV EVL-EVID-C8.2LP 8" 2-WAY COAXIAL 100V LINE / 8 OHM 30W 8 OHM CEILING SPEAKER PAIR WHITE

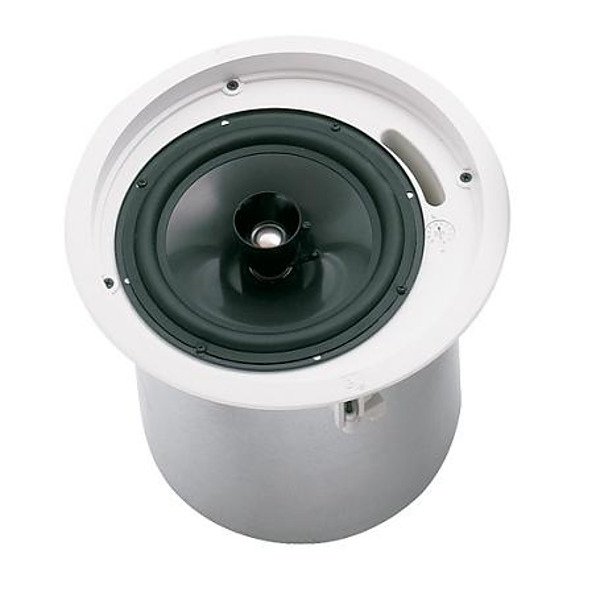

8" Two Way Coaxial Ceiling Speaker (Pair) View larger

ELECTROVOICE

EV EVL-EVID-C8.2LP 8" 2-WAY COAXIAL 100V LINE / 8 OHM 30W 8 OHM CEILING SPEAKER PAIR WHITE

ELEEVID-C8.2LP

EVL-EVID-C8.2LP

New product

EV 8" TWO WAY COAXIAL CEILING SPEAKER (PAIR)

More details

Balcatta: 0
Geebung: 0

EVID-C8.2LP Electro-Voice 8 Inch Low-Profile 2-Way Coaxial Ceiling Speaker - 100 V White

The Electro-Voice EVID-C8.2LP is a low-profile 8-inch coaxial two-way ceiling speaker system for 100 V operation or 8 ohm transformer bypass. It combines a 200 mm mid-bass driver in a vented enclosure with a 25 mm swivel HF transducer in a coaxial array, supporting symmetric conical coverage and a linear frequency response.

Built for installations with limited ceiling depth, the speaker uses a moisture-resistant special membrane, heat-resistant UL 94V-0 ABS components, a semi-gloss white powder-coated steel grille and a zinc-plated steel rear enclosure. Front rotary operation-mode selection allows the 100 V or 8 ohm setting to be assigned after installation and cabling, supporting practical commissioning in fixed ceiling audio systems.

Key Features

  • Low installation depth supports mounting where available ceiling space is limited
  • Coaxial driver layout helps maintain even coverage from a single ceiling position
  • 100 V and 8 ohm bypass operation gives flexibility for line-voltage or low-impedance designs
  • Front rotary selection supports commissioning after cabling is complete
  • White powder-coated grille helps create a tidy installed appearance
  • Colour White
  • Coverage (H x V) 110° conical
  • Dimensions (H x W x D) 178 x 270 (diameter) mm
  • Frequency Response 50 Hz - 20 kHz (-10 dB)
  • Impedance 8 ohm
  • Power Rating 100 watt
  • Sensitivity 91 db
  • Transformer Taps 3.75, 7.5, 15, 30 watt
  • Warranty 5 Years
  • Weight 5.0 kg each
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand EV
  • Config 2-WAY COAXIAL
  • Driver Size 8"
  • Power Type 100V LINE / 8 OHM
  • Mount Type CEILING MOUNTED
  • Input Connector PHOENIX TYPE REMOVABLE; WITH SCRE TERMINALS AND "LOOP-THRU"; ACCEPTS 12 GA WIRE
  • Weight (kg) 5 KG
  • HF Driver Size 1"
  • LF Driver Size 8"
  • Enclosure STEEL
  • Max SPL (dB) 117 DB
  • Hertz 50-20000HZ
  • Max Wattage 30W
  • Max 100V Tap (W) 30W
  • Pair PAIR
