> >>>EV EVL-EVID-C4.2 4" COAXIAL 100V LINE 30W 8 OHM CEILING SPEAKER PAIR WHITE

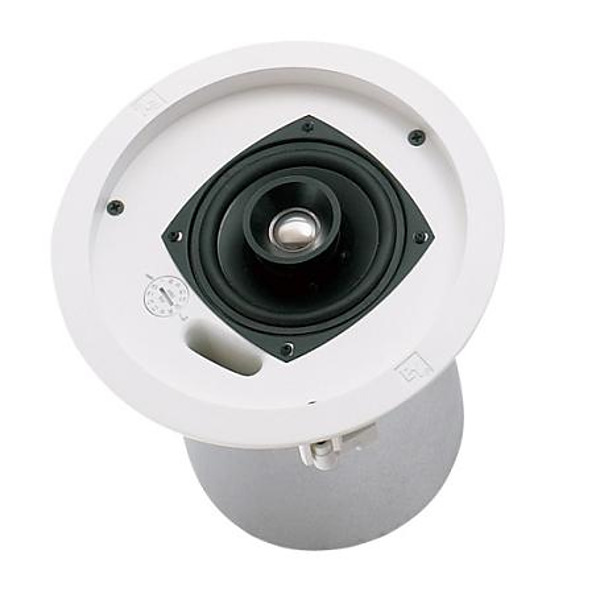

4" Two Way Coaxial Ceiling Speaker (Pair) View larger

ELECTROVOICE

EV EVL-EVID-C4.2 4" COAXIAL 100V LINE 30W 8 OHM CEILING SPEAKER PAIR WHITE

ELEEVID-C4.2

EVL-EVID-C4.2

New product

EV 4" TWO WAY COAXIAL CEILING SPEAKER (PAIR)

More details

Balcatta: 0
Geebung: 0

EVID-C4.2 4 Inch Two-Way Coaxial Ceiling Loudspeaker Pair White

The EVID-C4.2 is a 4-inch two-way coaxial ceiling loudspeaker system with an internal line-matching transformer for 70 V, 100 V or 8 ohm operation. Its package combines a bezel assembly, grille, rear enclosure, polypropylene low-frequency driver and waveguide-coupled titanium coated dome tweeter, with a protected 3.3 kHz crossover and front baffle wattage tap selection.

Designed for commercial music and voice reinforcement, it offers 130-degree conical coverage, a semi-gloss white powder-coated steel grille and a zinc-plated steel rear enclosure. The included ceiling support hardware and UL 1480 / UL 2043 safety agency ratings support clean installation in drop-ceiling and air-handling space applications.

Key Features

  • Flexible transformer and bypass options support both distributed and low-impedance audio designs.
  • 130-degree conical coverage helps maintain even music and speech dispersion across ceiling areas.
  • Integrated ported enclosure supports fuller low-frequency response from a compact ceiling format.
  • Protection circuitry helps safeguard the drivers and network during high-demand use.
  • White powder-coated grille and ABS baffle/bezel create a tidy installed finish.
  • Colour White
  • Coverage (H x V) 130° conical
  • Dimensions (H x W x D) 176 x 181 (diameter) mm
  • Frequency Response 65 Hz - 20 kHz (-10 dB)
  • Impedance 8 ohm
  • Maximum SPL 109 dB
  • Power Rating 80 watt
  • Sensitivity 86 dB
  • Transformer Taps 3.75, 7.5, 15, 30 watt
  • Warranty 5 Years
  • Weight 2.7 kg each
  • PRODUCT TYPE CEILING SPEAKER
  • COLOR WHITE
  • Brand EV
  • Config COAXIAL
  • Driver Size 4"
  • Power Type 70V/100V LINE
  • Mount Type CEILING MOUNTED
  • SPL (DB) 103 DB
  • Peak Power (W) 200W
  • Weight (kg) 2.7 KG
  • HF Driver Size 0.75"
  • LF Driver Size 4"
  • Enclosure STEEL
  • Max SPL (dB) 109 DB
  • Hertz 65-20000HZ (-10dB)
  • Max Wattage 30W
  • Max 100V Tap (W) 30W
  • Max 70V Tap (W) 30W
  • Pair PAIR
