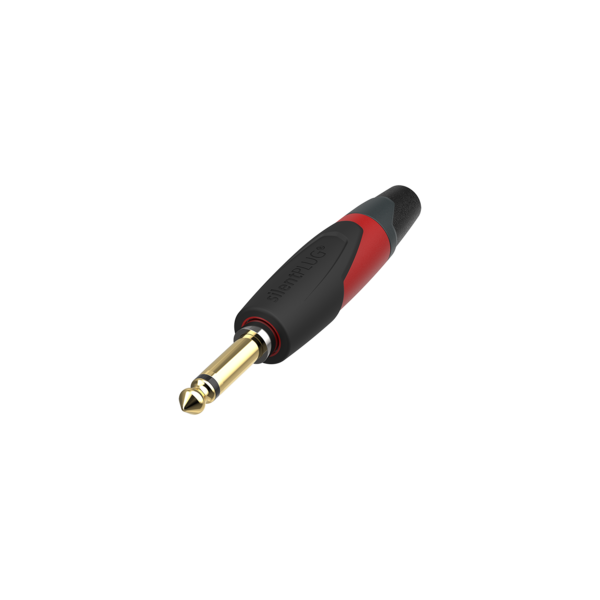

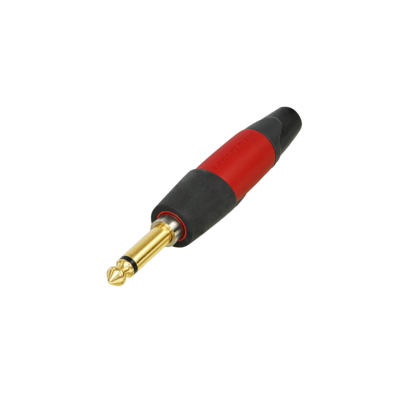

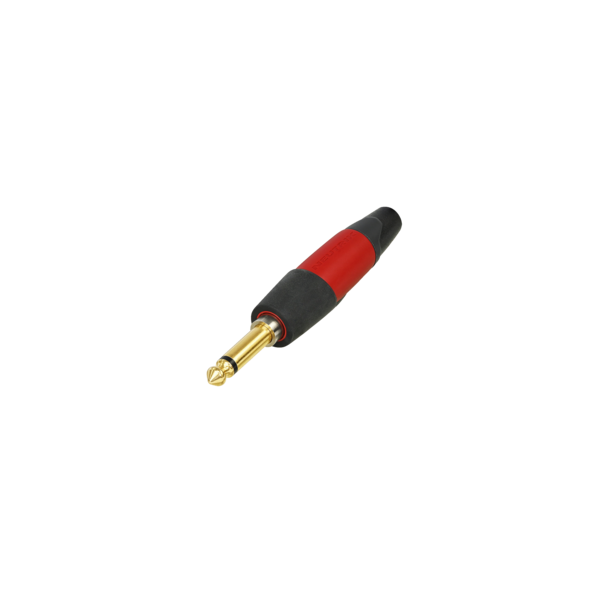

NP2XX-SILENT Neutrik silentPLUG 2-Pole 1/4-Inch Professional Phone Plug - Male

The Neutrik NP2XX-SILENT is a male 2-pole 1/4-inch (6.35 mm) professional phone plug for instrument and guitar cables. Its integrated REED-technology silent switch automatically shorts the cable during instrument changes under load, muting the connection to prevent pops and squeals.

The plug uses brass contacts with 0.2 micro m gold plating, solder-contact wiring and components made from polypropylene, polyamide, TPE and POM. It accepts cables with an outer diameter of 4 to 7 mm and a specified wire size of 1 mm² or 18 AWG. The rated voltage is below 50 V, and the operating temperature range is -20 °C to +65 °C.

Key Features

  • Automatically mutes the cable during instrument changes under load
  • REED-based switching operates without a separate manual mute control
  • Chuck-type strain relief supports reliable cable retention
  • Rubberised surfaces provide a secure handling area
  • Rated for more than 1,000 mating cycles
  • Material BRASS / POLYAMIDE / TPE / PA6 / POM
  • PRODUCT TYPE 2-POLE 1/4" (6.35 MM) PROFESSIONAL PHONE PLUG
  • COLOR RED/BLACK
  • Brand NEUTRIK
  • Series SILENTPLUG
  • Connectors MALE
  • Application INSTRUMENT (GUITAR) CABLE
