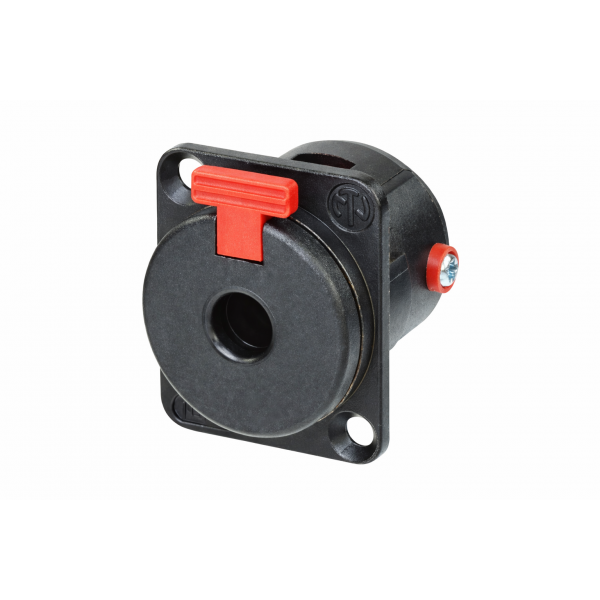

NU-NJ3FP6C-BAG Neutrik Locking 1-4 Inch Phone Jack Panel Mount D-Size - Black

The NU-NJ3FP6C-BAG is a high-quality locking 1-4 inch phone jack designed for secure panel-mount audio connections in pro audio racks, stage boxes, amplifiers, and vibration-prone equipment. Built in a standard D-size chassis (31 x 26 mm) with a rugged black zinc diecast shell, UL94 V-0 polyamide insert, and 2 µm silver-plated contacts, it delivers stable performance with low contact resistance under demanding live and installed sound conditions.

Ideal for mono or stereo A-gauge plugs, it locks automatically on insertion and releases only via a red latch tab to help prevent accidental disconnects, while offering 10 A rated current per contact, 1 kVdc dielectric strength, and compliance with EIA RS-453 and IEC 60603-11 for confident integration into professional audio and AV systems.

Key Features

  • Locking 1-4 inch chassis jack latches to standard A-gauge mono and stereo plugs for secure connections
  • 10 A rated current per contact with under 6 mOhm initial contact resistance for reliable signal and power handling
  • Black zinc diecast D-size shell with front mounting and solder terminals for fast panel installation
  • 2 µm silver-plated copper alloy contacts plus UL94 V-0 polyamide insert for durability and safety
  • Over 10000 mating cycles with over 80 N locking force for long-life touring and fixed-install applications
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
