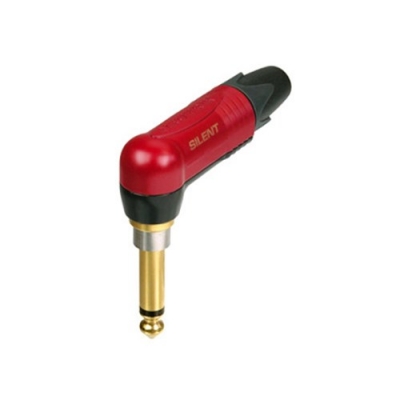

NEUTRIK NP2RX-AU-S 6.35MM 2POLE RIGHT ANGLE MONO JACK PLUG SILENT SWITCH RED/GOLD

Product Code: NEUNP2RX-AU-S

Supplier SKU: NU-NP2RX-AU-S

Condition: New product

Balcatta: 0

Geebung: 0

More info
Specifications
Download

NEUTRIK NP2RX-AU-S 6.35mm 2 Pole Right Angle Mono Jack Plug - Silent Switch Red Gold

The NEUTRIK NP2RX-AU-S is a professional 6.35 mm 2-pole right angle TS jack plug engineered for instrument and guitar cables where silent hot-swapping is essential. Featuring Neutrik silentPLUG technology, it automatically mutes (shorts) the cable during plug-in and unplugging to help prevent pops and squeals under load, while the rugged zinc diecast metal shell with rubber cushioning delivers dependable shock protection and long-term reliability.

Ideal for stage and studio guitar leads, pedalboard patching, and pro audio instrument interconnects, it uses a hermetically sealed REED-based silent switch for consistent performance beyond 1000 mating cycles and includes industry-proven chuck style strain relief for secure cable retention. With gold plated contacts, solder terminals, support for 4 to 7 mm cable O-D and 18 AWG conductors, plus compliance to IEC 60603-11 and EIA RS-453, it is a premium choice for clean changeovers; for instrument applications only and not for amplifier outputs.

Key Features

SilentPLUG auto-mute switching reduces pops and squeals when changing instruments under load
Right angle 6.35 mm TS 2-pole plug with 0.2 µm gold plated brass contacts for stable signal transfer
Hermetically sealed REED switch technology rated beyond 1000 mating cycles for long service life
Rugged zinc diecast shell with red coating and rubber cushion overlay for enhanced shock protection
Solder contacts with chuck type strain relief for 4 to 7 mm cable O-D and up to 1 mm2 18 AWG conductors
