> >>UNIKA NBB-0404 POE DANTE AUDIO TRANSCEIVER 4X MIC/LINE IN 4X OUT XLR/TRS 48KHZ GIGABIT DUAL RJ45
New UNIKA NBB-0404 POE DANTE AUDIO TRANSCEIVER 4X MIC/LINE IN 4X OUT XLR/TRS 48KHZ GIGABIT DUAL RJ45 View larger

UNIKA

UNIKA NBB-0404 POE DANTE AUDIO TRANSCEIVER 4X MIC/LINE IN 4X OUT XLR/TRS 48KHZ GIGABIT DUAL RJ45

UNINBB0404

UNI-NBB0404

New product

Balcatta: 0
Geebung: 0

UNINBB0404 UNIKA NBB-0404 PoE Dante Audio Transceiver 4x In 4x Out 48kHz - Single Unit

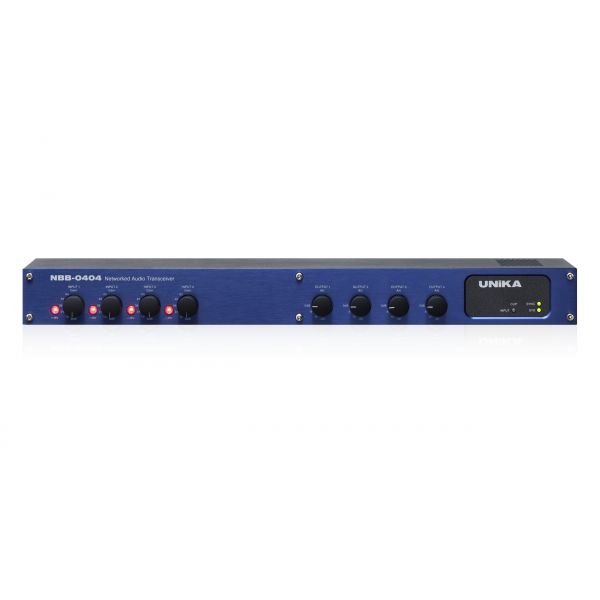

The UNINBB0404 is a high-quality PoE Dante audio transceiver designed for networked sound distribution, stageboxes, and fixed AV installs. Measuring 44 x 480 x 130 mm, it features a rugged metal chassis with an aluminum front panel and dual Gigabit RJ45 ports for daisy-chain connectivity to ensure reliable low-latency performance across large venues.

Ideal for live sound, broadcast, and commercial installations, it complies with Dante Controller and DDM workflows and supports Layer 3 Ethernet with 24-bit PCM at 48 kHz, offering +48V phantom power, per-channel gain and output attenuation, and XLR/TRS combo I/O for flexible mic/line operation, making it suitable for touring rigs and permanent systems.

Key Features

  • 4x mic/line inputs and 4x balanced XLR outputs with 24dBu max level and <2 ms typical latency
  • Metal chassis and aluminum front panel for durability in professional environments
  • Dual RJ45 Gigabit ports for PoE power and daisy-chain networking plus rackmount kit included
  • 20 Hz–20 kHz ±0.5 dB response, >105 dB SNR, THD+N <0.002% with CE FCC markings
  • 48 kHz Dante operation with per-channel 60 dB gain, +48V phantom power, and -20 dB output attenuators
  • PRODUCT TYPE AUDIO INPUT PANEL
  • COLOR BLUE
