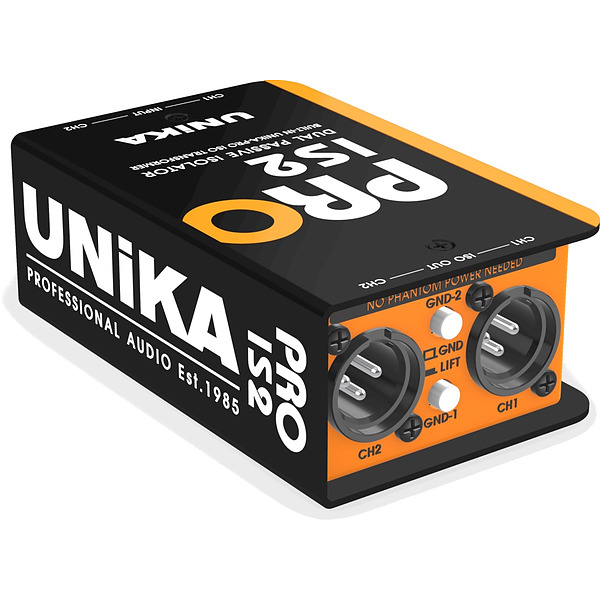

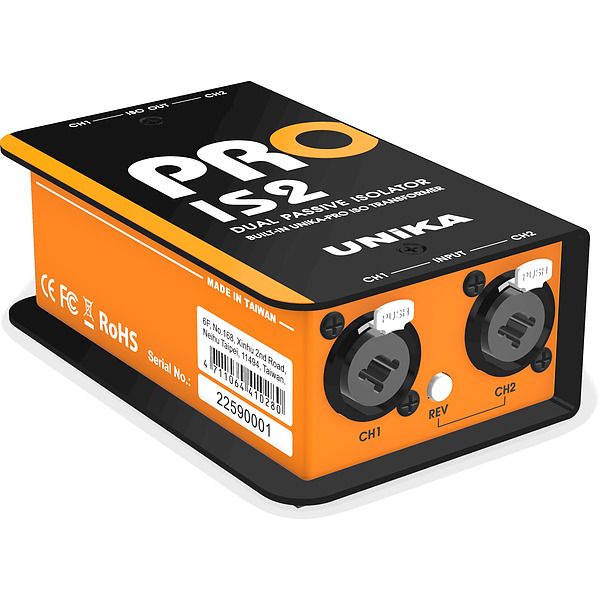

Pro Series Dual-Channel Audio Isolator

PRO IS2 is a passive one-input and three-output isolated signal splitter without the need to install batteries or provide phantom power.

PRO IS2 has a pair of built-in UNiKA-PROTM EI9AE3R3 1.25:1 isolation transformer with special coating and surrounded by Oriental silicon steel shield which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary Leakage caused by radio frequency interference, ground interference and potential difference. PRO IS2 is particularly suitable for recording studios, live performances and fixed installation projects.

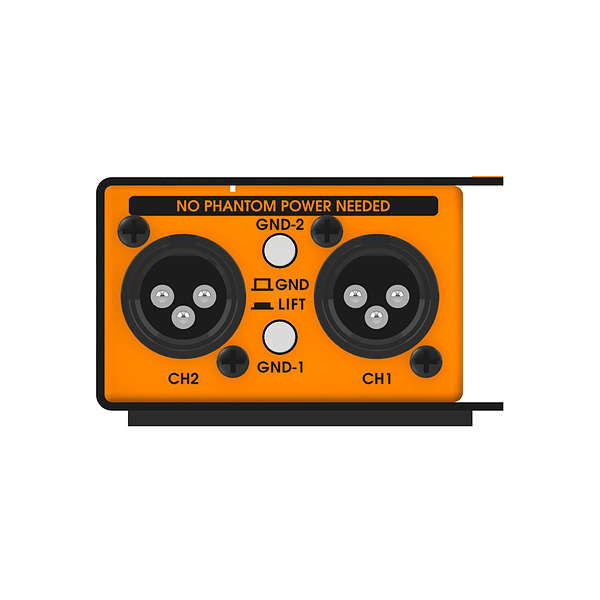

PRO IS2’s input uses XLR balanced sockets, suitable for inputting LINE signals. The XLR balanced sockets output by MONITOR are parallel and straight through without isolation transformers; CH-1/CH-2 output channels each have independent UNiKAPROTM isolation transformer and shared GND/LIFT switch for easy connection to remote or different power sources at the end of the equipment to eliminate the leakage and noise caused by the potential difference and the ground loop.

Featuers

• One input & three output audio splitter
• CH-1/CH-2 are equipped with separate UNiKA-PROTM EI9AE3R3 isolation transformer

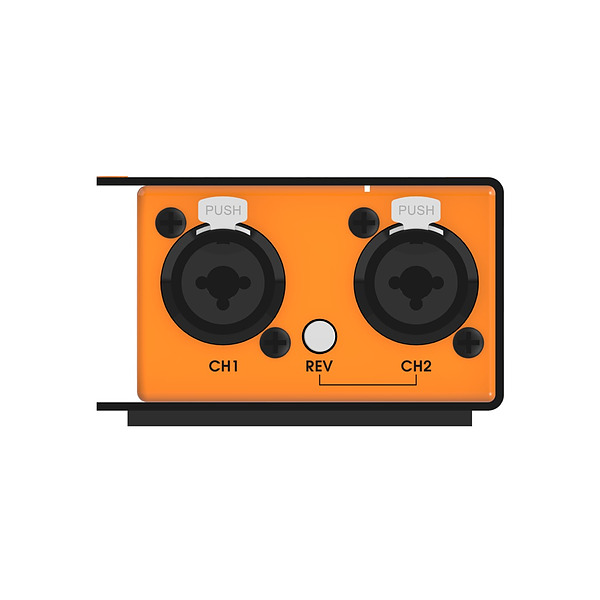

• Use XLR jack for input
• Set the PHASE REVERSE button for CH-2 input
• The output is equipped with independent GND/LIFT switches
