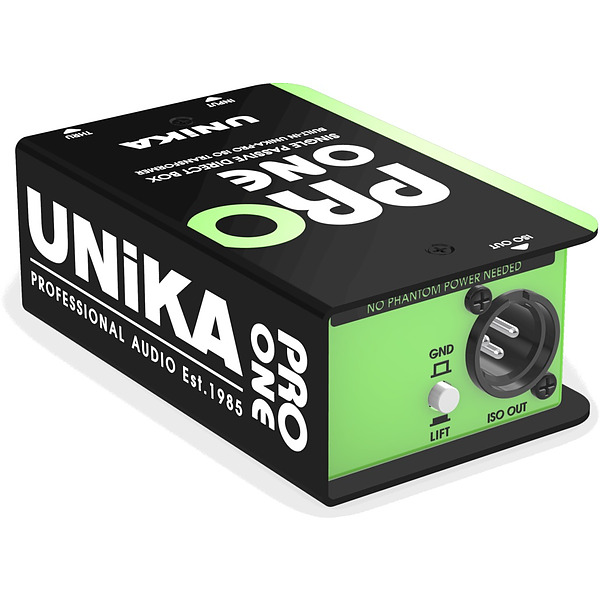

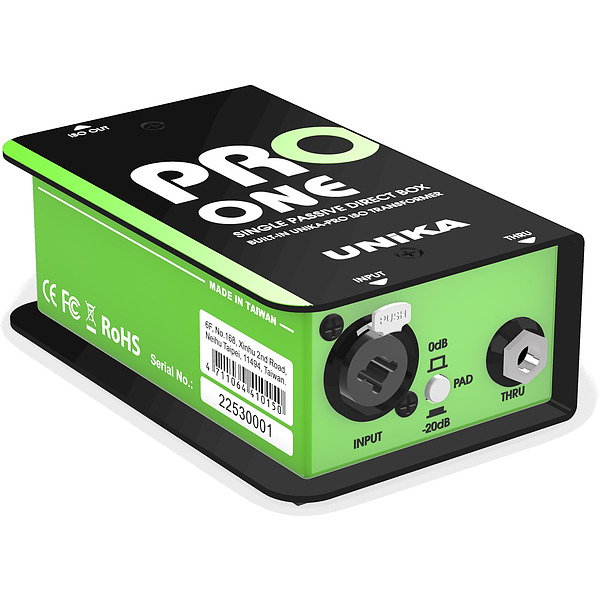

Pro Series Passive DI Box with Isolation Transformer

PRO ONE is a passive single-channel DI box. No need to install battery or provide phantom power to make it work.

PRO ONE has a built-in UNiKA-PROTM EI30A10E 1+1:1+1 isolation transformer, which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary leakage caused by radio frequency interference, ground interference and potential difference. PRO ONE is particularly suitable for electronic musical instruments, recording studios and fixed installation projects that do not use mixers. It converts high-impedance signals into low-impedance balanced signals, which facilitates extending the wiring distance and blocking interference.

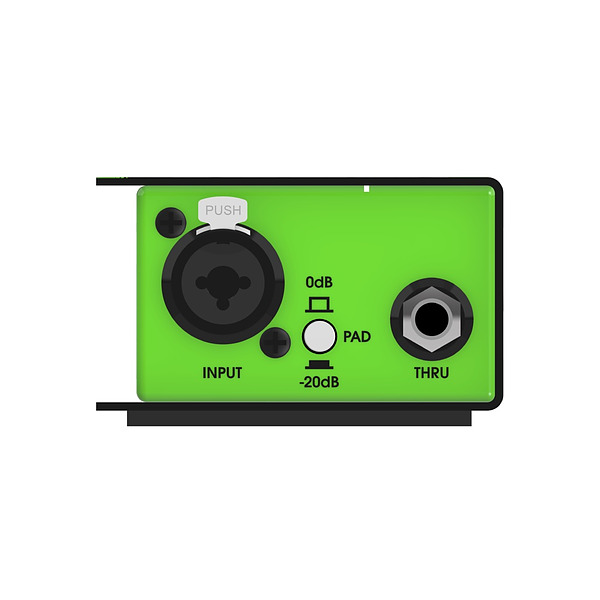

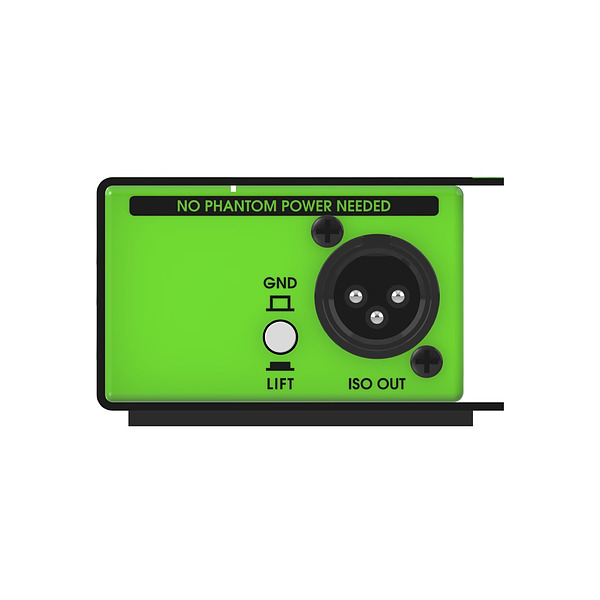

The PRO ONE uses a balanced/unbalanced combo socket on the input, and a TRS through out is convenient for musician to pass the direct signal to the instrument amplifier. In addition, it is equipped with a 0/-20dB attenuation switch, which is suitable for various types of audio signals with high and low impedance. The output terminal is also equipped with a GND/LIFT button to quickly eliminate ground noise.

Features

• Built-in UNiKA-PROTM EI30A10E isolation transformer
• The input socket uses Combo jack
• Use TRS jack as through out terminal
• There is 0dB/-20dB input signal attenuation switch
• The output is equipped with a GND/LIFT switch
