Dual Channel Passive Di Box

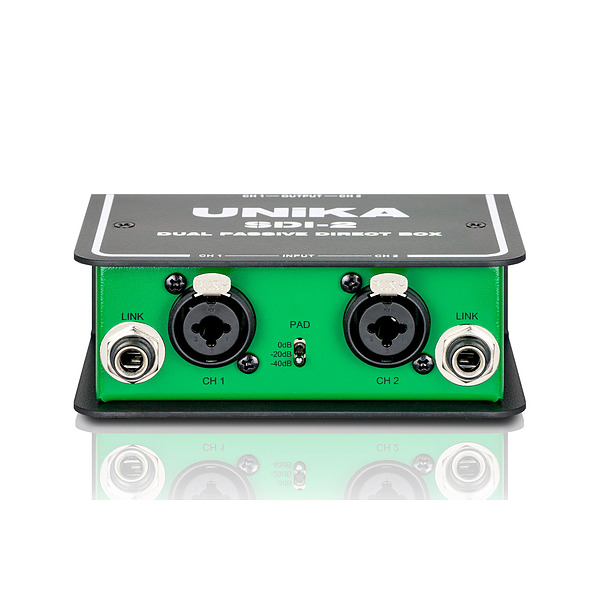

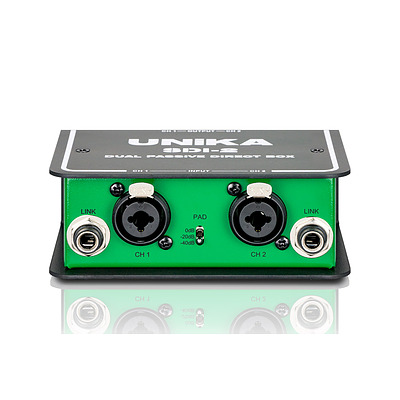

The UNiKA SDI-2 is an easy to use, dual channel, passive direct box for musical instrument and audio system applications. In addition to a high-quality audio transformer, the SDI-2 has some very useful built in features. So please take a few minutes to go through this user guide to ensure you take full advantage of the facilities on offer and get the best possible result.

Features

• Dual channel, high impedance, direct inputs for an electronic musical instrument or line-level audio source from a music player or computer.
• ¼“ TS LINK socket. A parallel wired connector which feeds the direct input signal to another destination such as instrument amplifier.
• Selectable, 3 step attenuator acting on the high impedance (hi-Z) direct input signal.

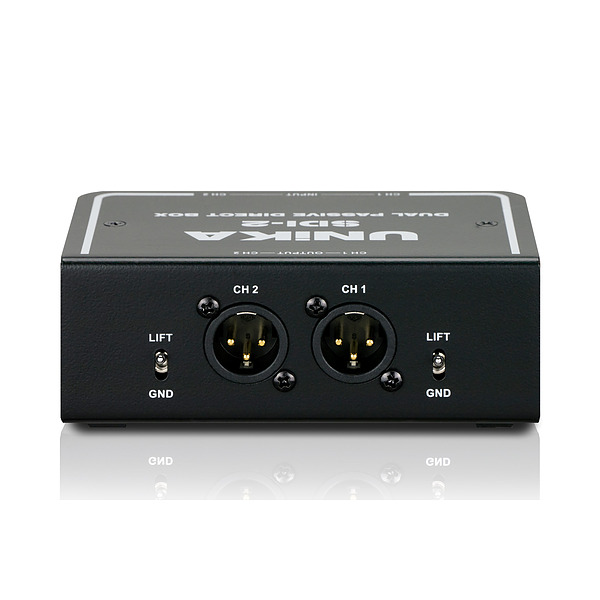

• Dual channel XLR with transformer isolated, balanced, low impedance (low-Z) output.
• Ground lift switch acting on pin 1 of the balanced output.
