> >>>>HH AUDIO CL32J-BK 8X4" PASSIVE PASSIVE 1600W 4 OHM BRACKET MOUNT COLUMN ARRAY PA SYSTEM BLACK
HH CL SERIES CL32J - 8 X 4" PASSIVE COLUMN ARRAY LOUDSPEAKER - BLACK View larger

HH AUDIO

HH AUDIO CL32J-BK 8X4" PASSIVE PASSIVE 1600W 4 OHM BRACKET MOUNT COLUMN ARRAY PA SYSTEM BLACK

HHACL32J-BK

CL32J-BK

New product

HH ELECTRONICS CL32J-BK 8X4 INCH PASSIVE COLUMN ARRAY LOUDSPEAKER BLACK

More details

Balcatta: 0
Geebung: 0

HHACL32J-BK HH Electronics CL32J-BK 400W RMS Passive Column Array Speaker Black

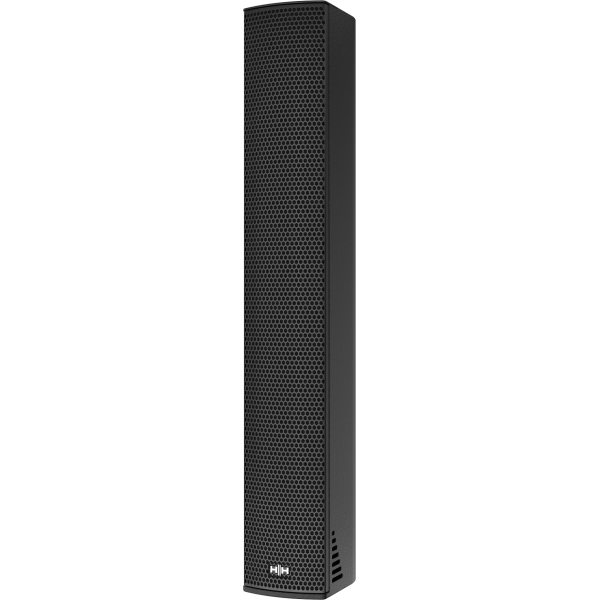

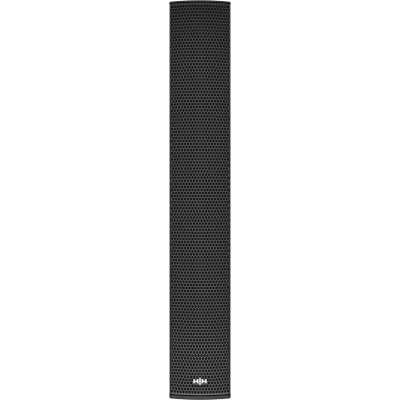

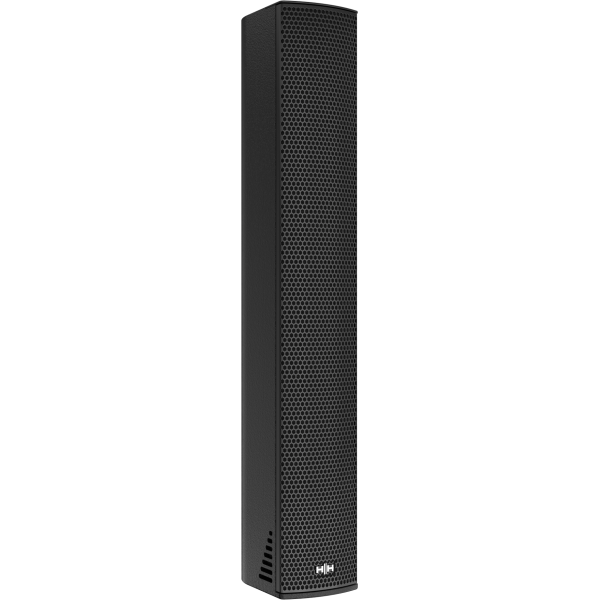

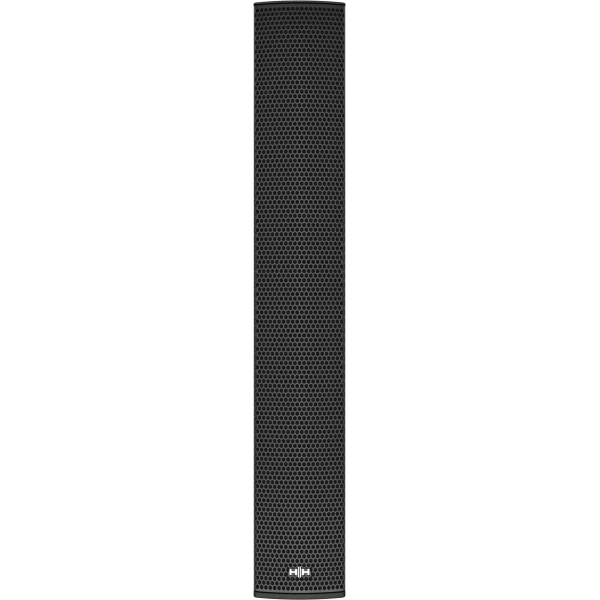

The HHACL32J-BK is the HH Electronics CL32J-BK black 2-way passive column array speaker system for column array PA applications. It combines eight 4 inch mid-frequency drivers with twenty-four 0.75 inch high-frequency drivers, delivering 400W RMS power handling, 4 ohm nominal impedance and a maximum peak SPL of 130dB.

Designed for houses of worship, museums, public transport stations, conference spaces, lecture halls and live sound reinforcement, the CL32J-BK provides 100 degree horizontal and 35 degree vertical coverage with asymmetric vertical projection to help optimise coverage from a fixed installation height. A plywood enclosure, scratch and wear-resistant finish, steel grille with acoustic foam backing and M8 mounting points support a robust installed loudspeaker package.

Key Features

  • High-output passive column array design suits installed PA and live sound reinforcement
  • Two-way driver layout supports full-range programme audio across demanding spaces
  • Asymmetric vertical projection can reduce the need for speaker tilt during installation
  • Controlled coverage helps focus sound across audience areas from a static height
  • Durable cabinet and protected grille suit busy public and performance environments
  • Colour Black
  • Impedance 4 Ohm
  • Sensitivity 101 dB
  • PRODUCT TYPE COLUMN ARRAY PA SYSTEM
  • COLOR BLACK
  • Brand HH AUDIO
  • Config PASSIVE
  • Driver Size 8x4"
  • Power Type PASSIVE
  • Mount Type BRACKET MOUNT
  • SPL (DB) 127
  • Dispersion Angle 100H x 35V
  • Input Connector REMOVABLE LOCKING CONNECTOR WITH SCREW-DOWN TERMINALS
  • Peak Power (W) 1600W
  • HF Driver Size 24x0.75"
  • LF Driver Size 8x4"
  • Enclosure PLYWOOD
  • Max SPL (dB) 130 DB
  • Hertz 70-20000HZ (±3dB)
  • Max Wattage 1600W
  • Unit Dimensions (mm) 903H x 140W x 185D
  • Program Power (W) 800W
