> >>>>HH AUDIO CL16J-BK 4X4" PASSIVE PASSIVE 800W 8 OHM BRACKET MOUNT COLUMN ARRAY PA SYSTEM BLACK

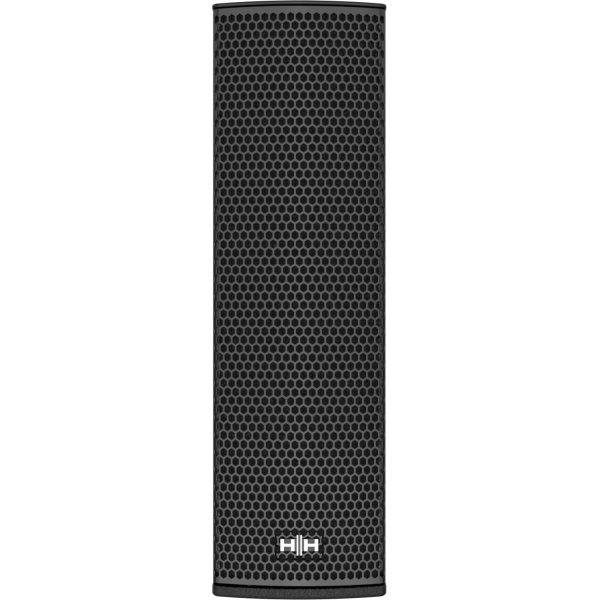

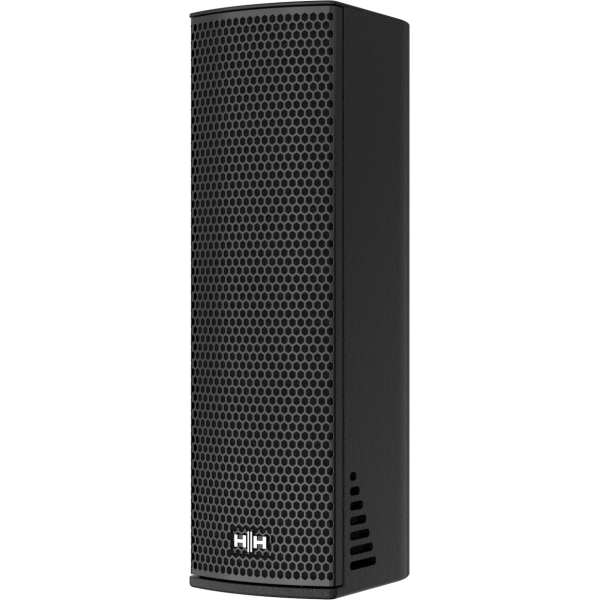

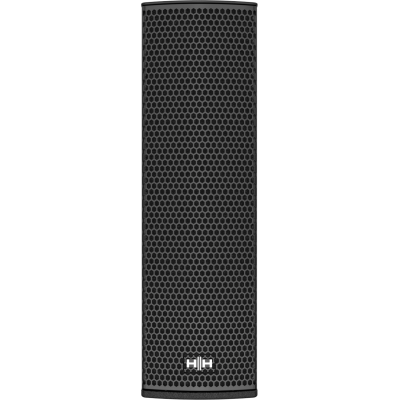

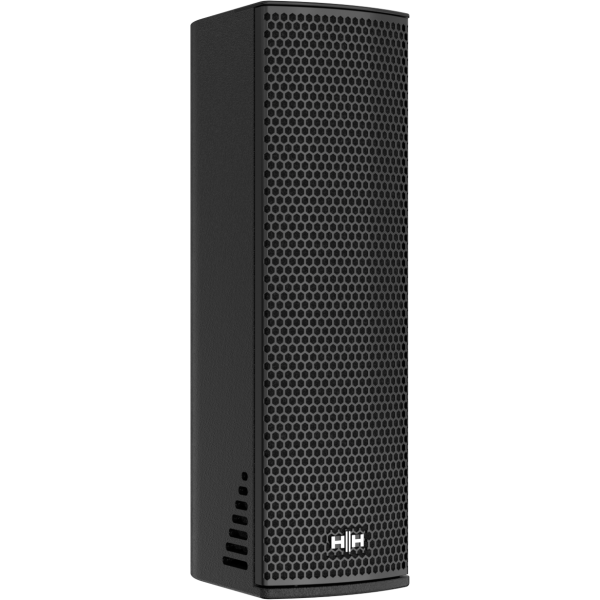

HH CL SERIES CL16J - 4 X 4" PASSIVE COLUMN ARRAY LOUDSPEAKER - BLACK View larger

HH AUDIO

HH AUDIO CL16J-BK 4X4" PASSIVE PASSIVE 800W 8 OHM BRACKET MOUNT COLUMN ARRAY PA SYSTEM BLACK

HHACL16J-BK

CL16J-BK

New product

HH ELECTRONICS CL16J-BK 4X4 INCH PASSIVE COLUMN ARRAY LOUDSPEAKER BLACK

More details

Balcatta: 0
Geebung: 0

HHACL16J-BK HH Electronics CL16J-BK 200W Passive Column Array Speaker Black

The HHACL16J-BK is the HH Electronics CL16J-BK black 2-way passive column array speaker system for column array PA applications. It combines four 4 inch mid-frequency drivers with twelve 0.75 inch high-frequency drivers, delivering 200W RMS power handling, 8 ohm nominal impedance and a maximum peak SPL of 127dB.

Designed for houses of worship, museums, public transport stations, conference spaces, lecture halls and live sound reinforcement, the CL16J-BK uses 100 degree horizontal and 40 degree vertical dispersion with asymmetric vertical projection to help optimise coverage from a fixed installation height. A plywood enclosure, scratch and wear-resistant paint finish, steel grille with acoustic foam backing and M8 mounting points support a durable, installation-ready loudspeaker package.

Key Features

  • Passive column array design supports focused PA coverage for installed and live sound use
  • Two-way driver arrangement helps deliver clear speech and full-range programme audio
  • Asymmetric vertical projection can reduce the need for speaker tilt during installation
  • Controlled dispersion helps direct sound across audience areas from a fixed mounting height
  • Robust enclosure and protected grille suit demanding public and performance environments
  • Colour Black
  • Impedance 8 ohm
  • Sensitivity 98 dB
  • PRODUCT TYPE COLUMN ARRAY PA SYSTEM
  • COLOR BLACK
  • Brand HH AUDIO
  • Config PASSIVE
  • Driver Size 4x4"
  • Power Type PASSIVE
  • Mount Type BRACKET MOUNT
  • SPL (DB) 121
  • Dispersion Angle 100H x 40V
  • Input Connector REMOVABLE LOCKING CONNECTOR WITH SCREW-DOWN TERMINALS
  • Peak Power (W) 800W
  • Weight (kg) 4.9 KG
  • HF Driver Size 12x0.75"
  • LF Driver Size 4x4"
  • Enclosure PLYWOOD
  • Max SPL (dB) 127 DB
  • Hertz 80-20000HZ (±3dB)
  • Max Wattage 800W
  • Unit Dimensions (mm) 475H x 140W x 185D
  • Program Power (W) 400W
