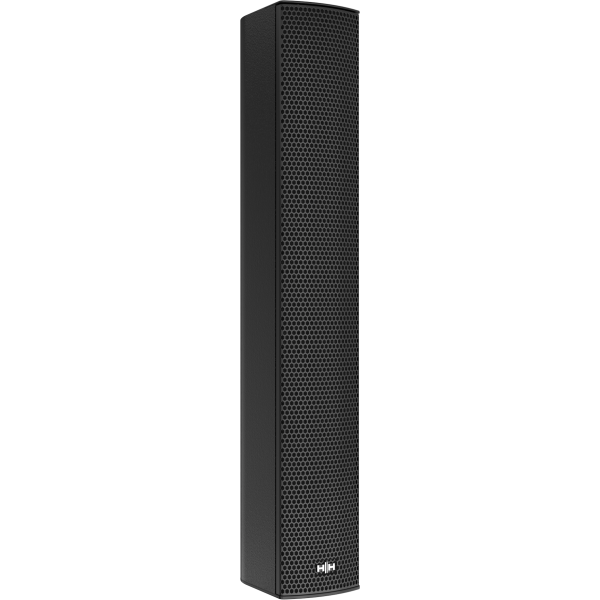

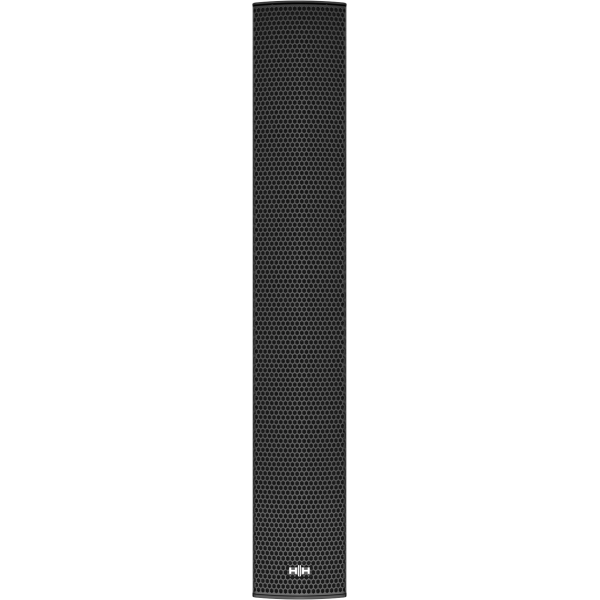

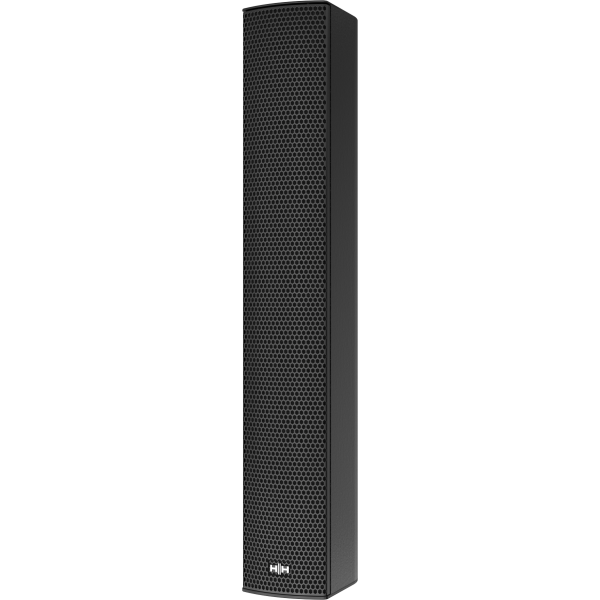

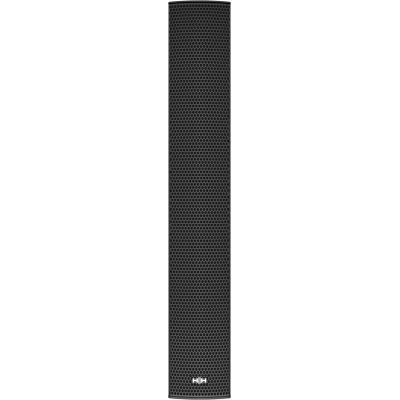

HH AUDIO CL32-BK 8X4" PASSIVE PASSIVE 1600W 4 OHM BRACKET MOUNT COLUMN ARRAY PA SYSTEM BLACK
HHACL32-BK
CL32-BK
New product
HH ELECTRONICS CL32-BK 8X4 INCH PASSIVE COLUMN ARRAY LOUDSPEAKER BLACK
HHACL32-BK HH Electronics CL32-BK 400W RMS Passive Column Array Speaker Black
The HHACL32-BK is the HH Electronics CL32-BK black 2-way passive column array speaker system for column array PA applications. It combines eight 4 inch mid-frequency drivers with twenty-four 0.75 inch high-frequency drivers, delivering 400W RMS power handling, 4 ohm nominal impedance and a maximum peak SPL of 130dB.
Designed for houses of worship, museums, public transport stations, conference spaces, lecture halls and live sound reinforcement, the CL32-BK provides 100 degree horizontal and 35 degree vertical coverage for controlled audience-area projection. It can be combined with either the CL32J or CL16J to form a larger column speaker system, while the plywood enclosure, wear-resistant finish and steel grille with acoustic foam backing support demanding installed audio use.
Key Features
- High-output passive column array design suits installed PA and live sound reinforcement
- Two-way driver layout supports clear speech and full-range programme audio
- Controlled dispersion helps focus sound coverage across audience areas
- Expandable column system option allows pairing with CL32J or CL16J models
- Robust enclosure and protected grille suit busy public and performance environments
- Colour Black
- Impedance 4 Ohm
- Sensitivity 101 dB
- PRODUCT TYPE COLUMN ARRAY PA SYSTEM
- COLOR BLACK
- Brand HH AUDIO
- Config PASSIVE
- Driver Size 8x4"
- Power Type PASSIVE
- Mount Type BRACKET MOUNT
- SPL (DB) 127
- Dispersion Angle 100H x 35V
- Input Connector REMOVABLE LOCKING CONNECTOR WITH SCREW-DOWN TERMINALS
- Peak Power (W) 1600W
- HF Driver Size 24x0.75"
- LF Driver Size 8x4"
- Enclosure PLYWOOD
- Max SPL (dB) 130 DB
- Hertz 70-20000HZ (±3dB)
- Max Wattage 1600W
- Unit Dimensions (mm) 878H x 140W x 185D
- Program Power (W) 800W
HHACL32-BK_Datasheet_1
