> >>>HH TNA-2120SA-G3 DUAL 12 INCH POWERED LINE ARRAY SUBWOOFER BLACK
HH TESSEN TNA-2120SA-G3 DUAL 12 INCH POWERED LINE ARRAY SUBWOOFER BLACK View larger

HH Electronics

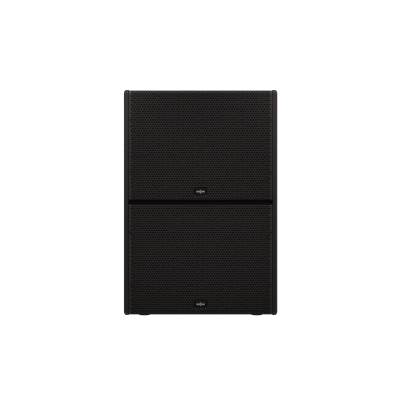

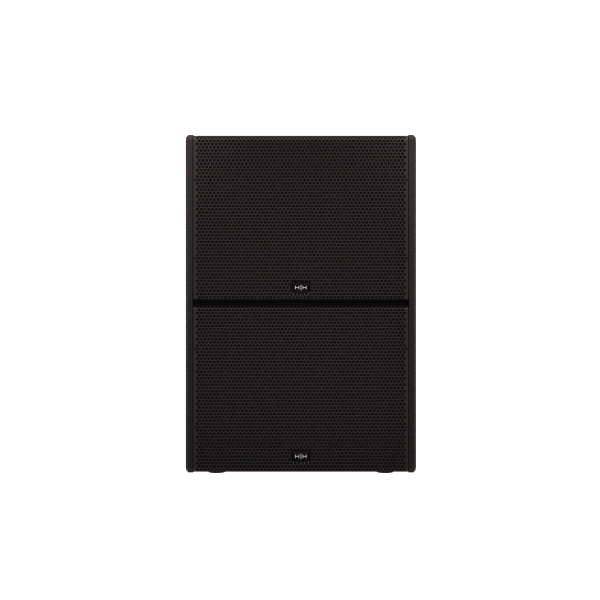

HH TNA-2120SA-G3 DUAL 12 INCH POWERED LINE ARRAY SUBWOOFER BLACK

HHATNA-2120SA-G3

TNA-2120SA-G3

New product

Balcatta: 0
Geebung: 0

HHATNA-2120SA-G3 HH Tessen TNA-2120SA-G3 Dual 12 Inch Powered Line Array Subwoofer - Black

The HHATNA-2120SA-G3 is a high-output active line array subwoofer engineered for professional live sound reinforcement, touring rigs, and fixed installations where tight, musical bass is essential. Built around a bass reflex enclosure with dual 12-inch HH-designed LF drivers and an integrated 3-channel Class-D amplifier (1200W RMS, 4800W peak), it delivers powerful low-frequency performance with a tuned response of 52Hz-150Hz (-3dB) and up to 137dB peak SPL.

Ideal for clubs, auditoriums, theatres, and houses of worship, this powered line array subwoofer features 56-bit DSP for crossover, EQ, phase, and time alignment plus six selectable presets to optimize array configurations and speed system deployment. With universal 100V-240V switched-mode power (PFC) and integrated pin-based rigging with multiple M8 mounting points, it offers reliable global operation, safer flying/stacking, and fast setup for modern production workflows.

Key Features

  • Dual 12-inch HH-designed high-performance LF drivers for deep, controlled sub-bass
  • Integrated 3-channel Class-D amplification: 1200W RMS system power (4800W peak) with satellite amp channels for external line array modules
  • 56-bit DSP with 6 presets for crossover, EQ, phase, and time optimization across array setups
  • Professional I/O: balanced XLR input, XLR link out and sub out with 2-way/3-way mode and ground lift plus locking speakON outputs

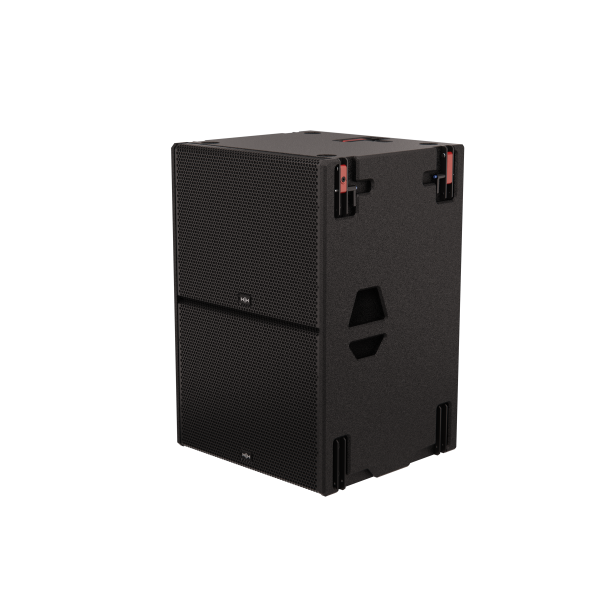

  • Tour-ready 18mm plywood cabinet in hard-wearing black finish with pin-based rigging and compact 727 x 496 x 455mm footprint
  • PRODUCT TYPE ACTIVE SUBWOOFER
  • COLOR BLACK
