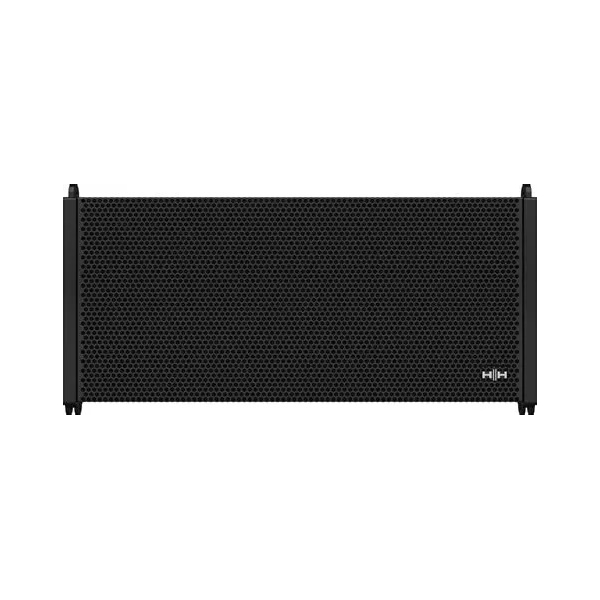

> >>>HH PRINCE SERIES LA10D 2X10 INCH 2-WAY PASSIVE LINE ARRAY SPEAKER BLACK

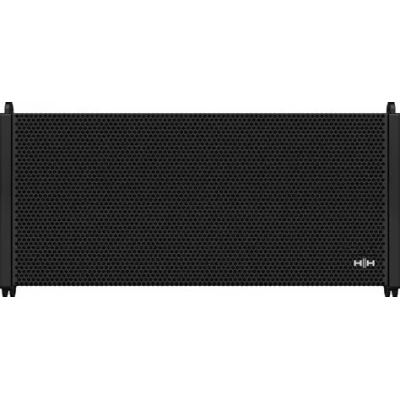

HH LA10D PRINCE SERIES 2X10 INCH 2-WAY PASSIVE LINE ARRAY SPEAKER BLACK View larger

HH Electronics

HH PRINCE SERIES LA10D 2X10 INCH 2-WAY PASSIVE LINE ARRAY SPEAKER BLACK

HHALA10D

LA10D

New product

Balcatta: 0
Geebung: 0

LA10D 2x10inch Passive 2-Way Line Array Loudspeaker

The LA10D is a passive 2-way dual 10" line array loudspeaker featuring 2x10" mid-low frequency drivers paired with a 3" high-frequency compression driver with a magnesium alloy diaphragm. It is engineered for small to medium touring systems, houses of worship, clubs, ballrooms and live event applications. Using symmetrical phase alignment technology, the coupling between the dual 10” drivers is optimised to maximise system efficiency and output. The all-neodymium high-frequency compression driver combined with HH phase plug technology delivers pinpoint directional control. The LA10D delivers a maximum SPL of 138dB (Peak).

The LA10D offers a horizontal coverage angle of 90° and a vertical coverage angle of 10° for controlled array performance and consistent audience coverage. The 680mm wide enclosure is designed to integrate seamlessly with the S18-H subwoofer and incorporates a 3-point rigging system for easy linking and splaying of multiple enclosures. The cabinet is constructed from robust plywood, finished in durable black paint, and protected by a hexagonal perforated steel grille with acoustic foam backing.

Key Features

  • Dual 10in mid-low drivers with 3in HF neodymium compression driver.
  • 138dB max SPL peak with 70Hz–18kHz (±3dB) frequency response for clear full-range sound
  • 90° (H) x 10° (V) dispersion for controlled coverage in line array deployments
  • Symmetrical phase alignment technology and HH phase plug for efficient driver coupling and accurate directivity
  • 680mm plywood enclosure with durable black finish, hex steel grille with acoustic foam, and 3-point rigging system for scalable arrays and S18-H subwoofer integration
  • PRODUCT TYPE LOUDSPEAKER
  • COLOR BLACK
