8" 2 Way Surface Mount Speaker - 200 Watt View larger

8" 2 Way Surface Mount Speaker - 200 Watt

EV ZX1I-90

New product

8" 2 Way Surface Mount Speaker - 200 Watt

More details

AVHI Australia Osborne Park 1300 650 144 www.avhi.com.au
Concept Audio Visual West Perth 9429 4333 www.conceptav.com.au
PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Jansen Audio Greenwood 9342 3305 www.jansenaudio.com.au
Soundtown Osborne Park 9242 8055 www.soundtown.com.au
Gilmour & Jooste Electrical Balcatta 9240 8663 www.gilmourandjoasteelectrical.com.au

Designed for top-notch quality with amazing versatility, the ZX/ZXA series sets a new standard of performance and practicality in sound reinforcement loudspeakers. Featuring high-end components and lightweight molded enclosures, the ZX/ZXA line is at home in any installed or portable application, from commercial sound to clubs, houses of worship, stages, arenas, and stadiums. Newly-designed high-power woofers and drivers ensure full-range sound with awesome richness and clarity. Sleek contemporary styling fits in anywhere.

Lightweight makes transport easy while enabling a multitude of flying and mounting options that are each supported by innovative mechanical solutions. Whether for portable use or permanent installation, the ZX/ZXA series represents the next level in advanced loudspeaker technology.

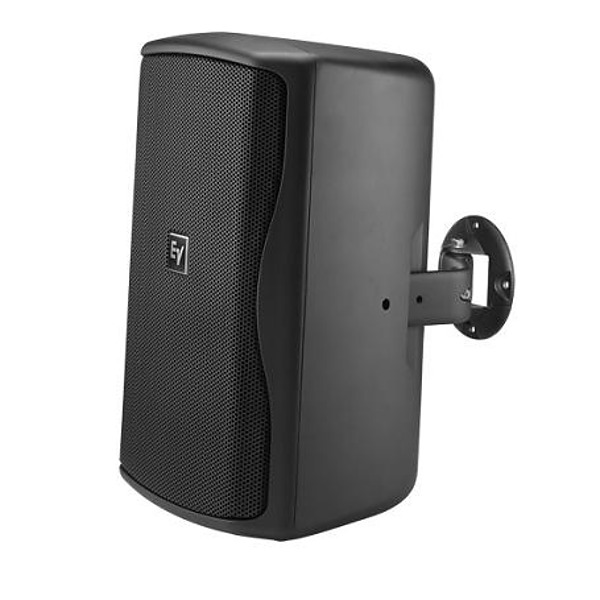

ZX1i installation is incredibly simple with the included QuickSAMTM mounting system. The QuickSAMTM is a unique, integrated mounting bracket which is virtually foolproof. It allows the installer to simply snap the speaker onto the bracket, then tighten it to the desired position. For array mounting, there is an optional array bracket kit available which allows multiple units to be mounted together for a variety of configurations.

Features

• Indoor/outdoor design

• Ideal for installed mains, fills, or distributed sound

• Velocity-compensated port for exceptional LF

• Long-excursion weather-treated EV8L woofer

• 1.25-inch DH2005 titanium HF compression driver

• 90º x 50º rotatable horn

• Passive crossover with full-band overload protection

• Compact high-impact polypropylene enclosure

• Integrated QuickSAM™ heavy-duty Strong-Arm Mounting bracket

• Paintable black or white finish

  • Colour Black
  • Coverage (H x V) 90 ° x 50 °
  • Dimensions (H x W x D) 457 x 282 x 264 mm
  • Frequency Response 48 - 20000 Hz (-10 dB)
  • Impedance 8 ohm
  • IP Rating IP44
  • Material High-Impact ABS Plastic
  • Maximum SPL 123 dB
  • Power Rating 200 watt (RMS) 800 watt (Peak)
  • Sensitivity 94 dB
  • Warranty 5 Years
  • Weight 8.4 Kg
