Remote Wall Panel for ARES5A with Mic & Line Inputs - Black

The WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line level audio source or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted pair CAT5e or better cabling.

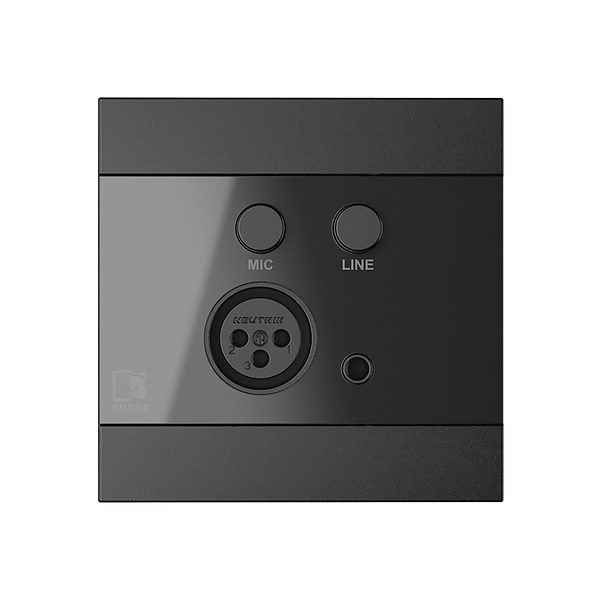

 On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

The WP205 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with Acrylic (PMMA) glass finish, it will blend into any environment.

Features

• Elegant design to blend in with any environment
• Compatible with EU (80x80 mm) installation materials
• Signal transmission over twisted pair (CAT5E) or better cabling
• Signal transmission insensitive for interferrence and noise
