Universal Wall Panel with Mic & Line Inputs + Bluetooth Receiver - Black

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line level audio source or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.

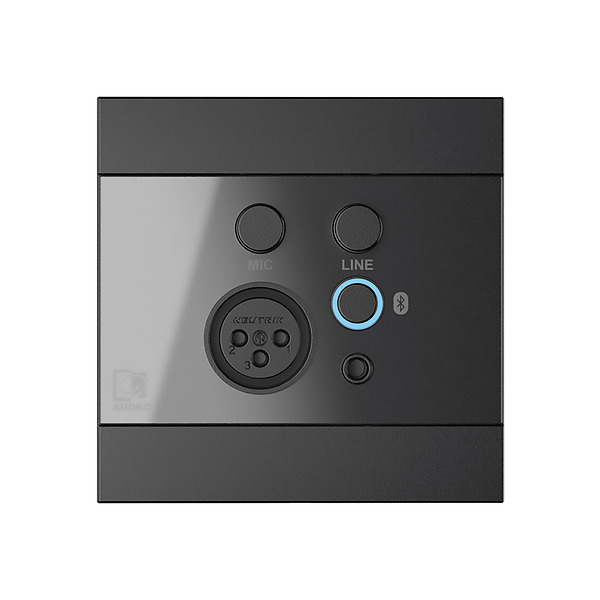

On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...

The WP225 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

Features

• Elegant design to blend in with any environment
• Compatible with EU (80x80 mm) installation materials
• Signal transmission over twisted pair (CAT5E) or better cabling
• Signal transmission insensitive for interferrence and noise
