Basic Wall Controller for MTX Matrix View larger

Basic Wall Controller for MTX Matrix

AUDAC MWX45/W

New product

Basic Wall Controller for MTX Matrix

More details

PAV – Sales and Install Bayswater 9378 0888 www.pav.com.au/shop
Mega Music Myaree Myaree 9330 2777 www.megamusiconline.com.au
K2 Audiovisual Willetton 9466 2508 www.k2av.com.au
Concept Audio Visual West Perth 9429 4333 www.conceptav.com.au
Blue Force Tuart Hill 1300 731 716 www.blueforce.com.au
Wesco Electrics (1966) East Perth 9325 3218 www.wesco.com.au

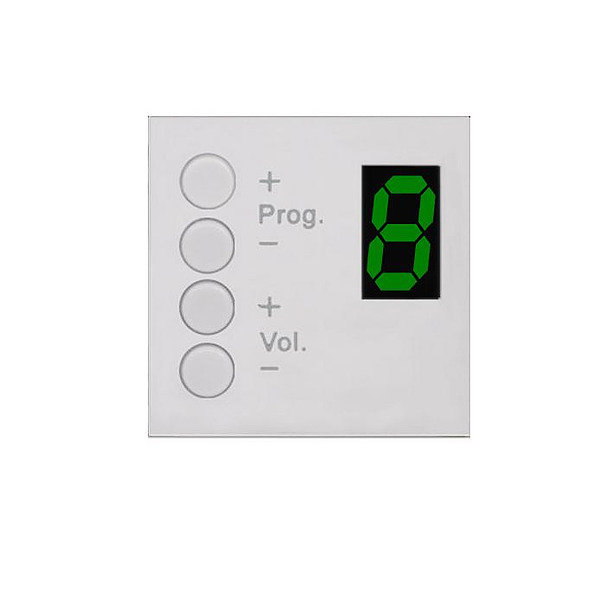

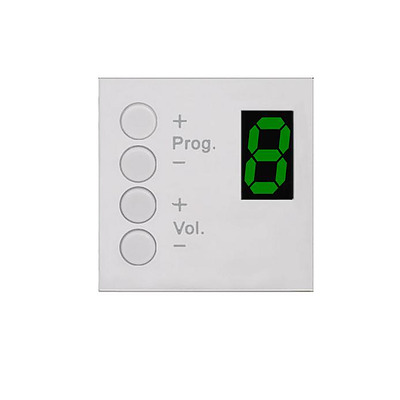

The MWX45W is a White wall panel controller to be used in combination with the AUDAC MTX series Multi Zone audio matrix systems.

It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume.

The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel.

Audac wall panel controllers require back boxes suited to the install. See Accessories Tab for mounting options

Features

  • Source selection (1-8)
  • Volume control
  • Terminal block connection
  • Slim design
  • Blends beautifully into walls
  • Easy installation
  • Colour White
  • Dimensions (H x W x D) 45 x 45 x 33 mm
  • Material ABS Plastic
  • Warranty 3 Years
  • Weight 28g
