Dynacord MXE5-64 Matrix Mix Engine 76x72ch - Black

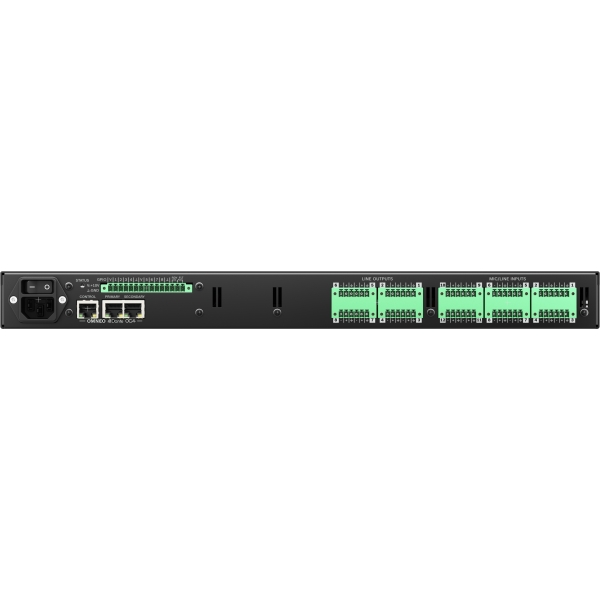

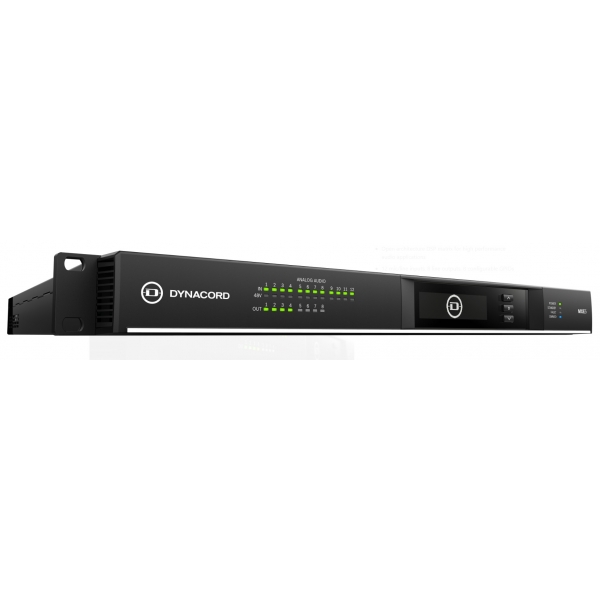

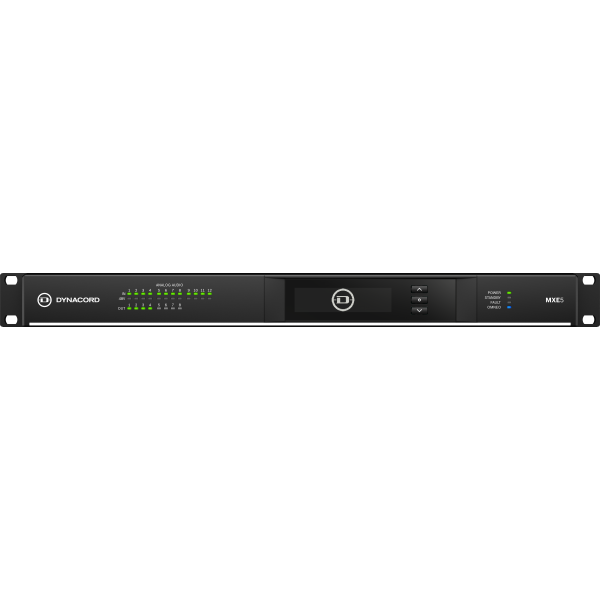

The MXE5-64 is a high-quality open-architecture DSP matrix mix engine designed for professional installed sound, networked audio routing, and venue-wide system control. Measuring 483 x 43.5 x 471 mm in a 19-inch 1RU rackmount chassis, it features 76x72 channel matrix capability with 12 mic-line inputs, 8 line outputs, and 64x64 Dante (AES67 compatible) networking to ensure pristine audio quality and ultra-low latency performance.

Ideal for stadiums, sports facilities, houses of worship, performing arts centers, theaters, conference venues, and clubs, it integrates with Dynacord SONICUE software and supports AES70-OCA control plus configurable GPIO for automation and third-party integration. With 48-96 kHz processing, internal supervision and fault monitoring, and redundant audio networking supported, it delivers dependable operation and scalable routing for demanding commercial environments.

Key Features

  • 76x72 DSP matrix with free configuration up to 3840 crosspoints and 256 signal paths for flexible mixing and routing
  • 12 mic-line inputs with per-channel switchable +48 V phantom power and 0 to +60 dB gain for microphones and sources
  • 64x64 Dante network audio with integrated 3-port RJ45 switch and 64 flows for streamlined IP audio distribution
  • 48-96 kHz floating-point DSP with ultra-low latency under 0.45 ms plus advanced filters dynamics auto mixer FIR and 348 s delay
  • 1RU black rack unit with 8 configurable GPIO and READY-FAULT relay plus 100-240 V AC operation for reliable system control
  • PRODUCT TYPE LOUDSPEAKER MANAGEMENT PROCESSOR
  • COLOR BLACK
