6 Channel 2 Zone Stereo Mixer

AUDAC PRE126

New product

6 Channel 2 Zone Stereo Mixer

More details

Techwest Solutions Osborne Park 9445 8844 www.techwestsolutions.com.au
3 Monkeys Audiovisual West Perth 9228 1681 www.3monkeysav.com
Stage & Studio Productions East Vic Park 6161 9704 www.stageandstudio.com.au
Power Music Productions Claremont 9385 6996 www.powermusic.com.au
Megavision Sound & Lighting Osborne Park 9444 6556 www.megavision.com.au
Totally Sound Bunbury 9725 4599 www.totallysound.com.au

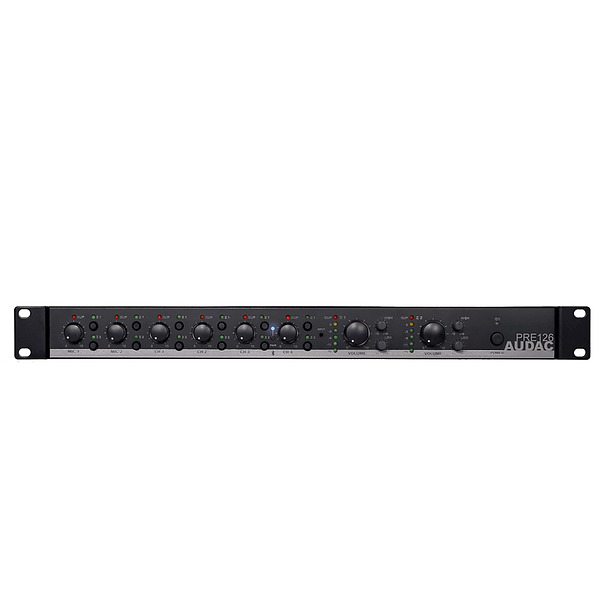

The PRE126 is two zone 6 channel stereo preamplifier containing a variety of input possibilities for microphone and line level audio signals, offering a possibility for a wide range of small to medium sized audio installations in various kinds of applications with a two zone audio distribution system.

It features two balanced mono inputs with phantom power and three band tone control allowing connection of microphones or line level signal sources. The switchable talkover function suppresses background music if a priority signal is present, making it suitable for paging or voice file announcements.

The four stereo line level inputs are implemented as a balanced one fitted with XLR connectors and three unbalanced ones fitted with RCA connectors. Hereby, connection possibilities for a wide variety of line level sources is guaranteed. Additionally, an integrated Bluetooth receiver (mixed with Ch 3) and 3.5 mm jack connection on its front panel (mixed with Ch 4) are offering convenient wired or wireless connection possibilties for portable and handheld devices including laptops, smartphones and tablets.

A priority mute contact suppresses all (non priority) music sources in case of contact closure, allowing to link autonomous alarm systems. Input volume control is done using the corresponding rotary dials on the front panel, while routing is settings are made through zone selection buttons.

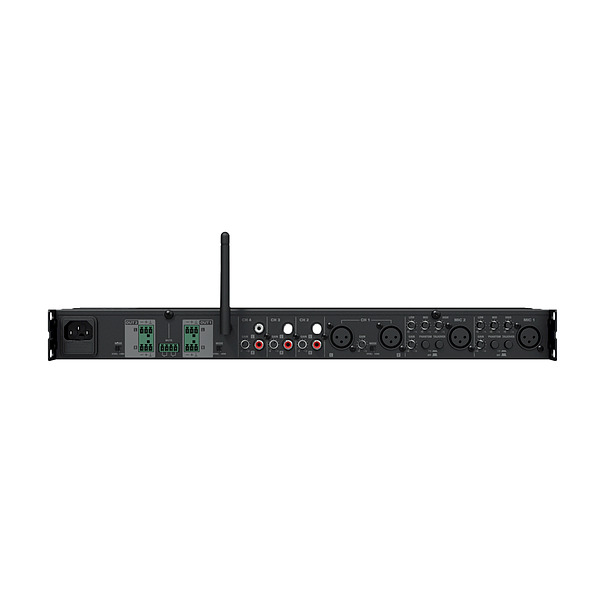

Each output section features a 6 segment LED VU bar, a master volume control and 2 band tone control. Connections and input or output configurations such as gain adjustment and mono/stereo switching can be done through the provided controls on the back of the device.

Features

  • Two zone system
  • 6 Channel stereo preamplifier
  • 2 Mic inputs with phantom & talkover
  • One balanced stereo line input (XLR)
  • Three unbalanced stereo line inputs (RCA)
  • 3.5 mm Jack input on front
  • Integrated Bluetooth receiver
  • Priority mute contact inp
  • Channels 6
  • Colour Black
  • Dimensions (H x W x D) 44 x 482 x 335 mm
  • Warranty 3 Years
  • Weight 4.1 kg
  • Zones 2
