PLN-6CS Plena All-in-One 6-Zone Call Station PTT Condenser Mic RJ45

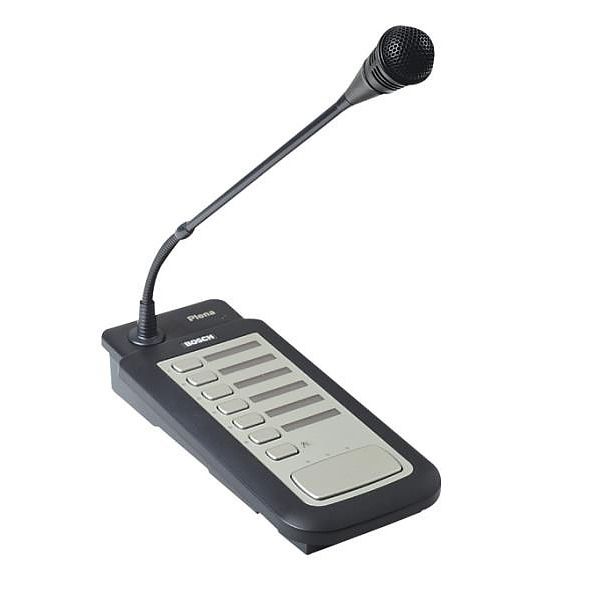

The PLN-6CS is a high-quality 6-zone call station designed for clear, controlled paging in Bosch Plena All-in-One public address systems. Built with a stable metal base, flexible 390 mm microphone stem, and a unidirectional condenser microphone, it features six zone selection keys with LED indicators plus an all-call key and a large momentary Press To Talk (PTT) button to ensure fast zone targeting and confident, intelligible announcements.

Ideal for retail, schools, hospitality, offices, and multi-zone facilities, it offers configurable microphone gain, speech filter, limiter, attention chime, and output level attenuation for improved speech clarity in real-world environments. Powered from the PLN-6AIO240 (24 Vdc) and connected via Cat-5 with RJ45 system and loop-through ports, it supports loop-through wiring (up to six call stations) and long-distance placement up to 600 m, while complying with IEC/EN 60065 and EN 55103-1/EN 55103-2 EMC standards for dependable commercial installation.

Key Features

  • Six-zone selection with LED indicators plus dedicated all-call key for flexible paging control
  • Momentary PTT with status indication and visible system state LEDs for clear user feedback
  • Unidirectional condenser microphone with configurable gain, speech filter (-3 dB @ 315 Hz), and limiter for improved intelligibility
  • Certified to IEC/EN 60065 and EMC standards including EN 55103-1/EN 55103-2 for professional compliance
  • RJ45 Cat-5 system and loop-through connectors, powered at 24 Vdc, supports up to 600 m cable runs and loop-through installations
  • Colour Charcoal with silver
  • Dimensions (H x W x D) Base: 55 x 108 x 240mm
  • Element Condenser
  • Frequency Response 100 Hz to 14 kHz +/-6 dB
  • Polar Pattern Unidirectional
  • Warranty 2 Years
  • Weight 0.5 kg
  • PRODUCT TYPE MICROPHONE
  • COLOR BLACK/SILVER
