> >>>ELECTRO VOICE EVL-ZX1I-90 ZX1I 8" 2-WAY PASSIVE 800W IP44 8 OHM SURFACE MOUNTED 2-WAY INDOOR/OUTDOOR INSTALL LOUDSPEAKER BLACK
8" 2 Way Surface Mount Speaker - 200 Watt View larger

ELECTRO VOICE

ELECTRO VOICE EVL-ZX1I-90 ZX1I 8" 2-WAY PASSIVE 800W IP44 8 OHM SURFACE MOUNTED 2-WAY INDOOR/OUTDOOR INSTALL LOUDSPEAKER BLACK

ELEZX1I-90

EVL-ZX1I-90

New product

EV 8" 2 WAY SURFACE MOUNT SPEAKER - 200 WATT

More details

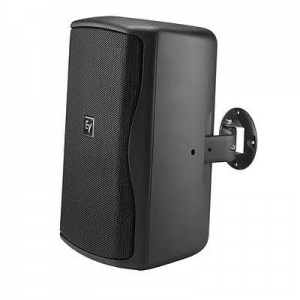

ELEZX1I-90 Electro-Voice ZX1i Two-Way Indoor Outdoor Installation Loudspeaker - 90° x 50° Black

The Electro-Voice ZX1i-90 is a two-way fixed-installation loudspeaker built around an EV8L 8-inch weatherised low-frequency driver and a DH2005 1-inch-exit compression driver. Its high-impact polymer vented enclosure, 200 W continuous power handling and rotatable 90° x 50° horn provide compact sound reinforcement that can be oriented horizontally or vertically.

Designed for indoor and outdoor fixed sound reinforcement, the ZX1i-90 uses weatherised components and a multilayer grille with hydrophobic cloth. The datasheet states that the system meets IEC 529 IP44 and MIL-810 environmental test conditions, while its integrated QuickSAM bracket supports snap-fit placement and adjustment to the required position.

Key Features

  • Focused coverage pattern suits longer-throw and cluster applications
  • Velocity-compensated porting extends low-frequency performance without vent noise
  • Full-bandwidth overload protection supports reliable long-term operation without audible effect
  • Paintable black finish helps the enclosure integrate with installed surroundings
  • Engineered cabinet geometry maximises rigidity to support acoustic performance
  • Colour Black
  • Coverage (H x V) 90 ° x 50 °
  • Dimensions (H x W x D) 457 x 282 x 264 mm
  • Frequency Response 48 - 20000 Hz (-10 dB)
  • Impedance 8 ohm
  • IP Rating IP44
  • Material High-Impact ABS Plastic
  • Maximum SPL 123 dB
  • Power Rating 200 watt (RMS) 800 watt (Peak)
  • Sensitivity 94 dB
  • Warranty 3 Years
  • Weight 8.4 Kg
  • PRODUCT TYPE 2-WAY INDOOR/OUTDOOR INSTALL LOUDSPEAKER
  • Brand ELECTRO VOICE
  • Config 2-WAY
  • Driver Size 8"
  • Power Type PASSIVE
  • Mount Type SURFACE MOUNTED
  • SPL (DB) 94
  • Dispersion Angle 90H X 50V
  • Voice Coil Size 1.25"
  • Input Connector 4-PIN PHOENIX CONNECTOR
  • Peak Power (W) 800W
  • Weight (kg) 8.4 KG
  • HF Driver Size 1"
  • LF Driver Size 8"
  • Enclosure HIGH IMPACT POLYMER
  • Max SPL (dB) 123 DB
  • Hertz 48-20000HZ (-10dB)
  • Max Wattage 200W
  • Unit Dimensions (mm) 451H x 282W x 263D
  • Dia (mm) 282
  • Crossover Freq 1.7KHZ
  • Program Power (W) 400W
  • Series ZX1i
  • Arrayable Yes
