Foil Shield Multicore Cable 16 Pair

EUROCABLE SSA16C

New product

Foil Shield Multicore Cable 16 Pair

More details

Techwest Solutions Osborne Park 9445 8844 www.techwestsolutions.com.au
P.S.I Audio Mandurah 0438 778 832 www.psiaudio.com.au
K2 Audiovisual Willetton 9466 2508 www.k2av.com.au

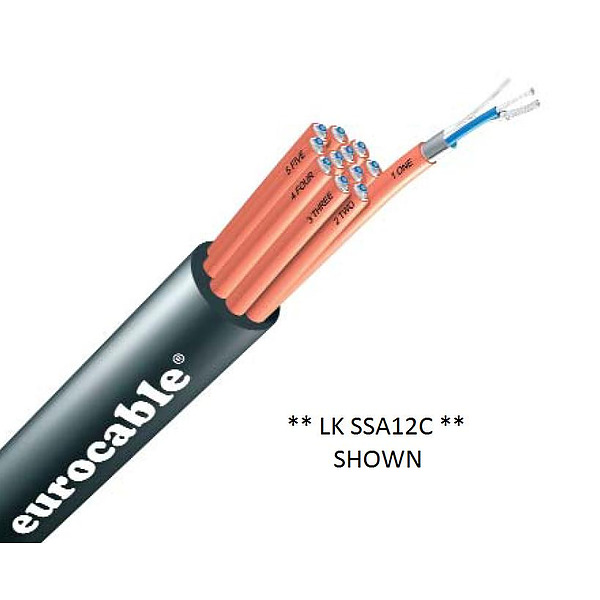

SSA features for each pair an aluminium/mylar foil shield with drain wire inside the foil for easier installation.

All pairs are individually shielded, twisted and identified by numbers and letters.

Available from 2 to 64 pairs.

Features

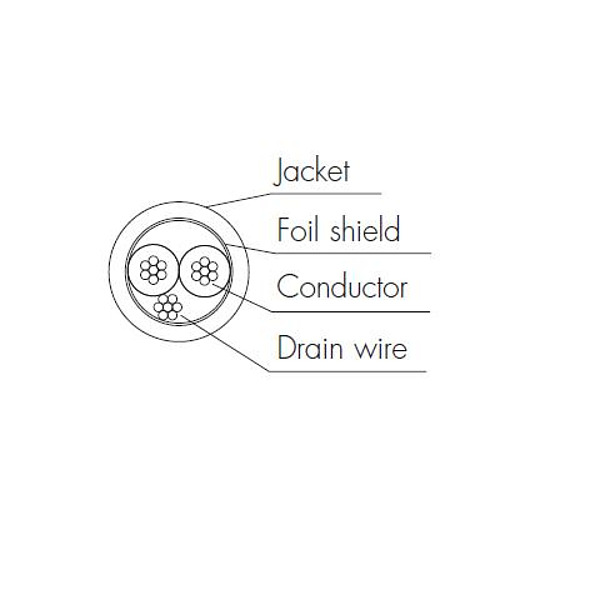

• Each pair consists of two insulated twisted conductors and drain wire, aluminium/mylar foil shield and jacket.


Available per metre (minimum of 10 metres then increments of 5 metres)

  • Colour Black
  • Conductor Size 0.22 mm2
  • Outside Diameter 16.6 mm
  • Roll Length 500 Metre
  • Shield Material Aluminium/Mylar foil Shield plus 24 AWG drain wire
  • Weight 38.50 Kg per 100 metre
