> >>>EUROCABLE LKSSAD04C 4 PAIR AES/EBU DIGITAL AUDIO CABLE 110 OHM ALUMINUM SHIELD PVC BLACK
View larger

EUROCABLE

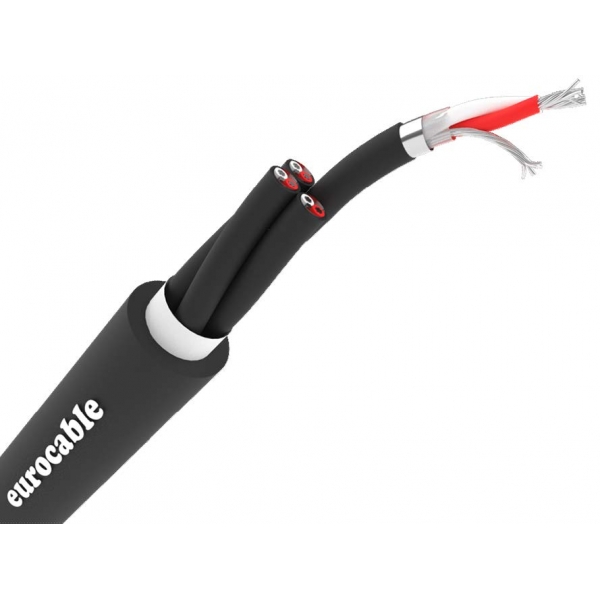

EUROCABLE LKSSAD04C 4 PAIR AES/EBU DIGITAL AUDIO CABLE 110 OHM ALUMINUM SHIELD PVC BLACK

EURSSAD04C

EU LKSSAD04C

New product

EUROCABLE SSAD MULTIPAIR DIGITAL CABLE 4 PAIR

More details

Balcatta: 0
Geebung: 0

EURSSAD04C Eurocable 4 Pair AES EBU Digital Audio Cable 110 Ohm Aluminum Shield PVC Black - Bulk

The EURSSAD04C is a high-quality 4-pair AES/EBU digital audio multicore cable designed for installation and mobile use in live sound, touring, broadcast, and studio systems. Measuring 10.3 mm overall diameter, it features 26 AWG tinned copper conductors (7 × 0.16 mm) with foam-polyolefine insulation and an aluminum-polyester tape plus drain-wire shield providing 100 percent coverage to ensure low capacitance, clean signal integrity, and reliable noise rejection.

Ideal for stage boxes, racks, patch bays, and digital console interconnects, it complies with IEC 60332-1-2 and offers a 110 ohm nominal impedance, conductor-to-conductor capacitance of 50 pF/m, -20 to 70 C operating range, 9 × O.D. minimum bend radius, and a rugged black PVC jacket, making it suitable for demanding mobile rigs and fixed installations.

Key Features

  • 4 balanced pairs, 26 AWG tinned copper with foam-polyolefine insulation for low-capacitance AES/EBU transmission
  • Aluminum-polyester tape shield with drain wire, 100 percent coverage for excellent EMI/RFI rejection
  • Durable black PVC jacket rated -20 to 70 C with 9 × O.D. bend radius for flexible deployment
  • 110 ohm nominal impedance, 50 pF/m conductor-to-conductor capacitance, IEC 60332-1-2 flame performance
  • Supplied in bulk for custom looms, stage boxes, and rack wiring
  • PRODUCT TYPE SECURITY CABLE
  • COLOR BLACK
