> >>>EUROCABLE LKMF04P 4PR 24AWG MULTIPAIR ANALOG/AES/DMX 100OHM AL FOIL SHIELDED PVC JACKET BLACK

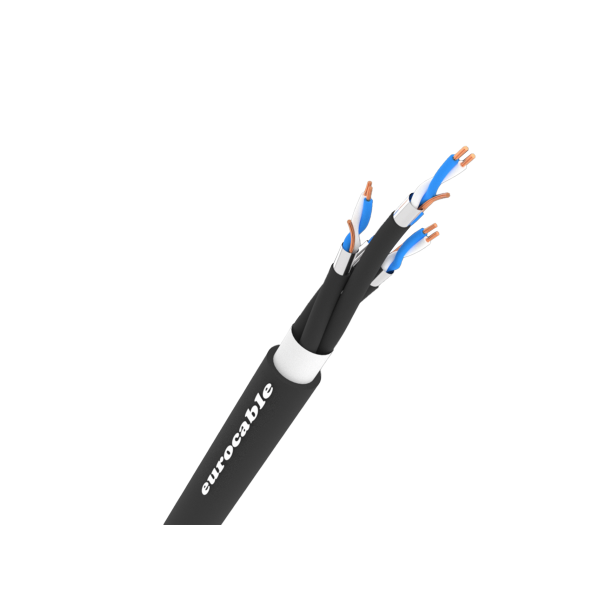

New EUROCABLE LKMF04P 4PR 24AWG MULTIPAIR ANALOG/AES/DMX 100OHM AL FOIL SHIELDED PVC JACKET BLACK View larger

EUROCABLE

EUROCABLE LKMF04P 4PR 24AWG MULTIPAIR ANALOG/AES/DMX 100OHM AL FOIL SHIELDED PVC JACKET BLACK

EURLKMF04P

EU LKMF04P

New product

Balcatta: 0
Geebung: 0

EURLKMF04P Multipair Cable – 4-Pair 24AWG Shielded

The EURLKMF04P is a high-quality 100 Ohm multipair cable designed for reliable signal transmission in professional audio and data applications. Constructed with four 24AWG twisted pairs, each shielded with an aluminum foil (Al/PET) layer, this cable minimizes crosstalk and interference, ensuring clear and stable data transfer. With a durable fire-retardant PVC jacket, it meets IEC 60332-3-24 standards for fire safety, making it suitable for demanding environments.

This cable features a nominal impedance of 102 ± 5 Ohm and a DC resistance of ≤ 94.2 Ohm at 20°C, providing consistent performance over long distances. Rated for 300 Vac, the EURLKMF04PP operates in temperatures ranging from -20°C to +70°C. Its flexibility and robust construction make it ideal for use in installations requiring frequent movement or bending, with a bending radius of at least 12 times the outer diameter (10.3 mm).

  • 4 x 24AWG twisted pairs with aluminum foil shielding for low interference.
  • Fire-retardant flexible PVC jacket, compliant with IEC 60332-3-24 standards.
  • Nominal impedance of 102 ± 5 Ohm for stable signal transmission.
  • Operating temperature range from -20°C to +70°C.
  • Minimum bending radius of 12 times the cable’s outer diameter (10.3 mm).
  • PRODUCT TYPE AUDIO CABLE
  • COLOR BLACK
