CA-L-4E6S-W100 Canare L-4E6S Star Quad Microphone Cable - 100 m Roll White

The Canare L-4E6S is a four-conductor 24 AWG star-quad microphone cable supplied as a 100 m roll with a white PVC sheath. Each stranded annealed copper conductor has a nominal cross-sectional area of 0.20 mm² and XLPE insulation.

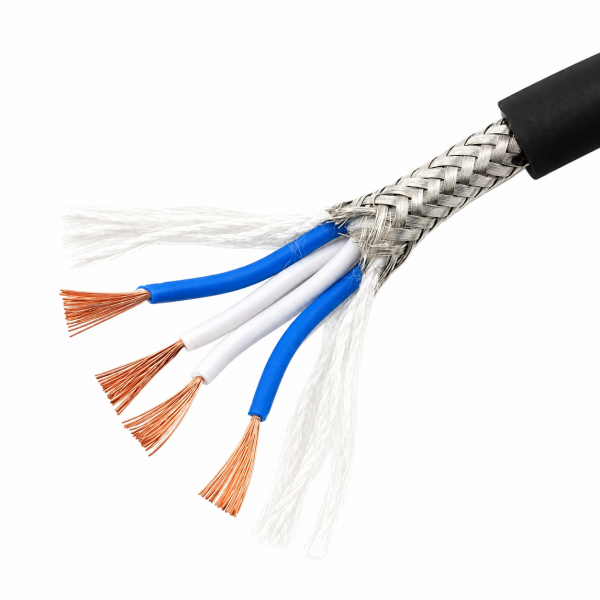

The cable uses a tinned annealed copper shield with greater than 94% coverage and has a 6.0 mm overall diameter. The four conductors are arranged as one quad, with blue and white insulation, cotton filler material and an overall tape layer.

Key Features

  • Conductor structure comprising 40 strands of 0.08 mm annealed copper wire
  • Maximum conductor DC resistance of 9.8 Ω/100 m
  • Maximum shield conductor DC resistance of 3.1 Ω/100 m
  • Minimum insulation resistance between conductors of 1,000 MΩ·km
  • Cable weight of 4.8 kg/100 m
  • Colour White
  • Warranty 12 Months
  • Brand CANARE
  • Weight (kg) 4.8
  • Cable Type MICROPHONE
  • UTP/STP STP (NON LAN CABLE)
  • Sheath PVC
  • Size 24AWG
  • Single Core 4 CORE
  • Solid/Stranded STRANDED
  • Cable Length (m) 100M
  • Storage Type ROLL
  • Cable Colors WHITE/BLUE
