> >BOSCH PRP-IM2C1A PROSPERO IP INTERFACE MODULE 2X CONTROL IN 2X CONTROL OUT 1X LINE AUDIO IN 1X LINE AUDIO OUT

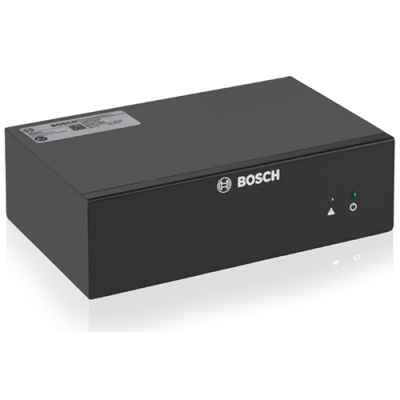

New BOSCH PRP-IM2C1A PROSPERO IP INTERFACE MODULE 2X CONTROL IN 2X CONTROL OUT 1X LINE AUDIO IN 1X LINE AUDIO OUT View larger

BOSCH

BOSCH PRP-IM2C1A PROSPERO IP INTERFACE MODULE 2X CONTROL IN 2X CONTROL OUT 1X LINE AUDIO IN 1X LINE AUDIO OUT

BOSPRP-IM2C1A

PRP-IM2C1A

New product

Balcatta: 0
Geebung: 0

BOSPRP-IM2C1A BOSCH PROSPERO IP Interface Module 2x Control In 2x Control Out 1x Line In 1x Line Out PoE Black - 1 Pack

The BOSPRP-IM2C1A is a high-quality IP interface module designed for transmitting line-level audio and control signals across PROSPERO public address systems. Measuring 44 x 146 x 105 mm and weighing 475 g, it features a durable metal housing and PoE single-cable connectivity to ensure fast installation, low power consumption, and dependable operation.

Ideal for paging, background music distribution, and emergency task linkage in transport hubs campuses retail and commercial buildings, it complies with IEEE 802.3af Class 3 PoE and 100BASE-TX networking and offers 1x line input 1x line output with Phoenix connectors plus 2x dry-contact inputs and 2x SPDT relay outputs for flexible integration, making it suitable for 24/7 control rooms and distributed IP audio environments.

Key Features

  • 48 V PoE Class 3 <5 W enabling audio and control over IP with a single Ethernet cable
  • Robust metal housing in RAL 9017 Traffic black with compact form factor for cabinet tray mounting three modules per 1U
  • 1x line in 1x line out 100 Hz–18 kHz 44.1 kHz sampling MP3 and PCM codecs on 3-pin Phoenix connectors
  • 2x dry-contact inputs and 2x relay outputs SPDT rated to 30 VDC or 250 VAC 1 A for emergency linkage control
  • Standards-based 100BASE-TX TCP IP UDP RTP TFTP HTTP HLS with front panel status indicators and reset for easy maintenance
  • PRODUCT TYPE INTERFACE MODULE
  • COLOR BLACK
