> >AUDAC NWP222PLUS/B NETWORKED AUDIO I/O PANEL 2X XLR IN/OUT BLUETOOTH DANTE/AES67 BLACK

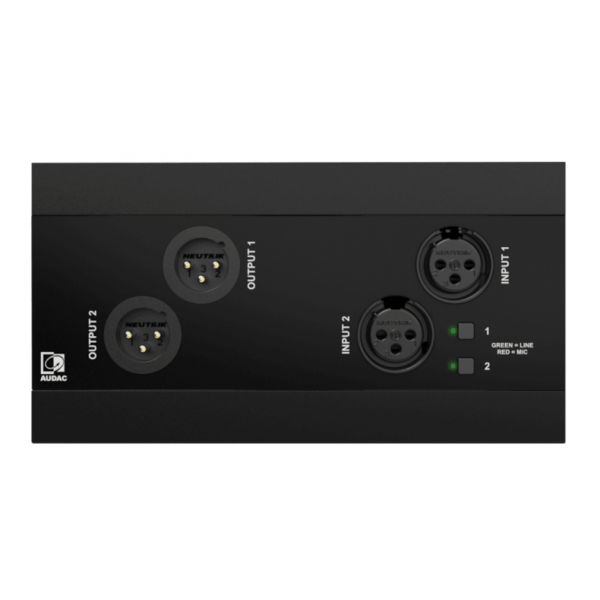

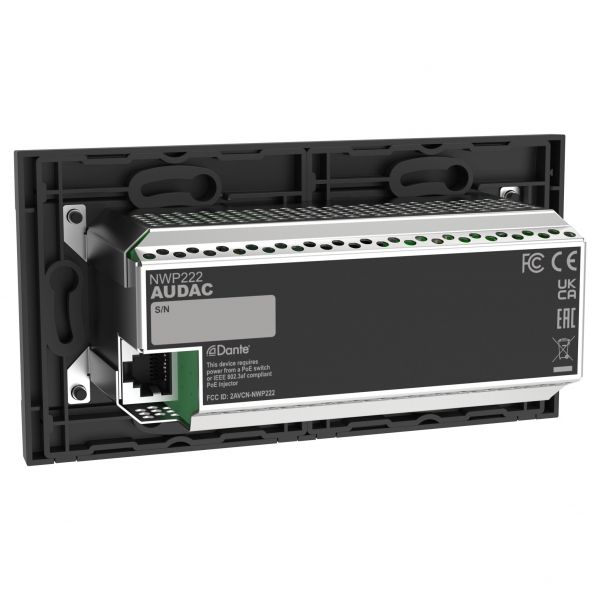

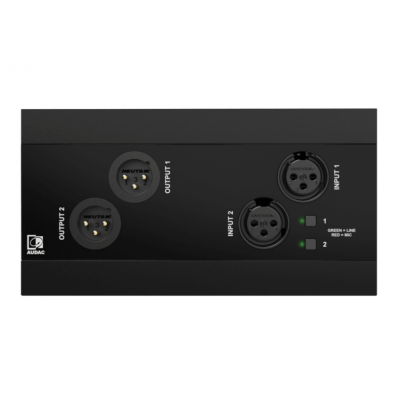

AUDAC NWP222PLUS/B NETWORKED AUDIO I/O PANEL 2X XLR IN/OUT BLUETOOTH DANTE/AES67 BLACK View larger

AUDAC

AUDAC NWP222PLUS/B NETWORKED AUDIO I/O PANEL 2X XLR IN/OUT BLUETOOTH DANTE/AES67 BLACK

AUDNWP222PLUS/B

NWP222+/B

New product

Balcatta: 0
Geebung: 0

AUDNWP222PLUS/B AUDAC NWP222 Networked Audio IO Wall Panel 151x80x55mm-Black

The AUDNWP222PLUS/B is a professional networked audio I O wall panel designed for Dante and AES67 installations requiring clean local connectivity and flexible routing. Measuring 151 x 80 x 55.4 mm, it features a rugged ABS construction with a premium hardened glass front to ensure durability, a modern finish, and reliable performance in demanding commercial AV environments.

Ideal for bars and restaurants education hotels corporate spaces sports venues and government facilities, it delivers 2 balanced XLR inputs and 2 balanced XLR outputs plus integrated Bluetooth audio for convenient wireless playback. With PoE power and app-based configuration, it supports mic or line switching, +48 V phantom power for condenser microphones, internal DSP with EQ and automatic level control, and easy commissioning through the AUDAC Touch app for scalable IP audio systems.

Key Features

  • 4x4 Dante AES67 network audio interface for seamless integration with modern networked sound systems
  • 2 XLR female inputs and 2 XLR male outputs for balanced microphone and line level connectivity
  • Mic line switching with +48 V phantom power plus front buttons and RGB status LEDs for fast on-site control
  • Integrated DSP processing with EQ mixing and automatic level control configurable via AUDAC Touch
  • PoE powered wall panel in black RAL9005 compatible with standard EU style in wall boxes for clean installs
  • PRODUCT TYPE AUDIO INPUT PANEL
  • COLOR BLACK
