BOSCH IP AMPLIFIER MODULE - 15 WATT
BOSAMN-P15-SIP
F.01U.389.866
New product

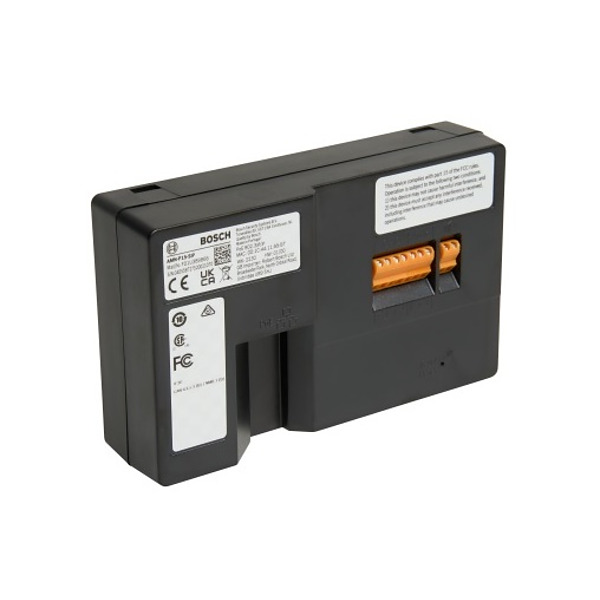

The AMP-P15-SIP is an IP SIP based amplified module intended to drive passive loudspeakers directly or through an external amplifier. The IP amplifier module is a compact unit and can be mounted on a surface or on a DIN rail via the additional adapter (included).
Features
-
Full IP for power (PoE), communication (SIP) and control
-
Low impedance loudspeaker connection and amplifier line out
-
Class D amplifier and Digital Signal Processing (DSP)
-
Remotely configurable via Web-GUI
- Colour Black
- Dimensions (H x W x D) 92 x 146 x 40 mm
- IP Rating IP30
- Operating Temperature -40 °C — 55 °C
- Power Rating 7 watt with PoE & 15 watt with PoE+
- Protocols IPv4, SIP, NTP, TCP, UDP, HTTP, HTTPS, ONVIF (Discovery)
- Warranty 3 Years
- Weight 250g
Data Sheet
