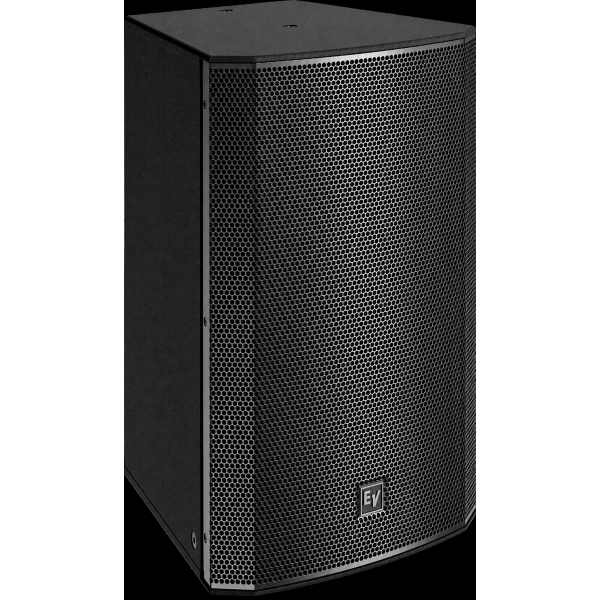

> >>ELECTRO VOICE EVC-1122-95B EVC 12" 2-WAY PASSIVE 1200W IP44 BRACKET MOUNT 2-WAY LOUDSPEAKER BLACK
New ELECTRO VOICE EVC-1122-95B EVC 12" 2-WAY PASSIVE 1200W IP44 BRACKET MOUNT 2-WAY LOUDSPEAKER BLACK View larger

ELECTRO VOICE

ELECTRO VOICE EVC-1122-95B EVC 12" 2-WAY PASSIVE 1200W IP44 BRACKET MOUNT 2-WAY LOUDSPEAKER BLACK

ELEEVC-1122-95B

EVC-1122-95B

New product

Balcatta: 0
Geebung: 0

ELEEVC-1122-95B Electro-Voice 12-Inch Two-Way Passive Loudspeaker 90° x 55° - Black

The Electro-Voice EVC-1122-95B is a black 12-inch two-way passive loudspeaker for fixed installation, combining an EVS-12M woofer with a DH-3 pure-titanium compression driver. Its rotatable constant-directivity waveguide provides 90° horizontal by 55° vertical coverage, while 300 W continuous power handling and a calculated 126 dB maximum SPL support high-output applications.

The IP44-rated model is intended for indoor fixed installations. Eight M10 suspension points and provisions for optional U-bracket or pan-and-tilt wall mounting enable flexible positioning, while the dual terminal arrangement supports parallel speaker connection and audio pass-through.

Key Features

  • 70 Hz to 22 kHz frequency response supports wide-bandwidth audio reproduction
  • Fourth-order Linkwitz-Riley crossover promotes smooth off-axis response and vocal definition
  • High-output woofer design supports low distortion and efficient performance
  • 15 mm plywood enclosure with EVCoat provides enhanced durability for installed use
  • Compact trapezoidal cabinet suits space-conscious fixed-installation projects
  • Colour Black
  • IP Rating IP44
  • Sensitivity 95 dB
  • PRODUCT TYPE 2-WAY LOUDSPEAKER
  • Brand ELECTRO VOICE
  • Config 2-WAY
  • Driver Size 12"
  • Power Type PASSIVE
  • Mount Type BRACKET MOUNT
  • SPL (DB) 95
  • Dispersion Angle 90H X 55V
  • Input Connector DUAL 4-CONTACT 10 AWG PHOENIX/EUROBLOCK STYLE SCREW TERMINALS
  • Peak Power (W) 1200W
  • Weight (kg) 20.3 KG
  • HF Driver Size 1.25"
  • LF Driver Size 2"
  • Enclosure PLYWOOD WITH EVCOAT
  • Max SPL (dB) 126 DB
  • Hertz 70-22000HZ (-10dB)
  • Max Wattage 300W
  • Unit Dimensions (mm) 616H x 395W x 401D
  • Crossover Freq 1.6KHZ
  • Series EVC
