> >>QUEST QI15W 15" 2-WAY PASSIVE 700W 8 OHM HORIZONTAL/VERTICAL MOUNTING INSTALLATION LOUDSPEAKER WHITE

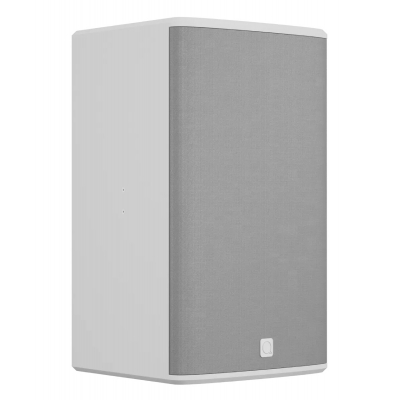

QUEST QI15W 2-WAY 15 INCH PASSIVE LOUDSPEAKER INSTALL WHITE View larger

QUEST

QUEST QI15W 15" 2-WAY PASSIVE 700W 8 OHM HORIZONTAL/VERTICAL MOUNTING INSTALLATION LOUDSPEAKER WHITE

QUEQI15W

QI15W

New product

Balcatta: 0
Geebung: 0

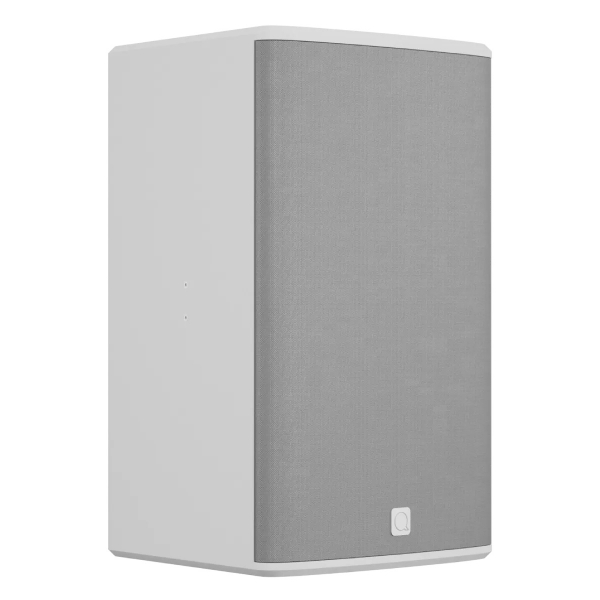

Qi15W Quest 15-Inch 2-Way Passive Installation Loudspeaker - White

The Quest Qi15W is a full-range two-way loudspeaker created for large-scale permanent audio installations requiring a white RAL 9003 finish. Its long-excursion 381 mm (15-inch) woofer and 25 mm (1-inch) compression driver cover 48 Hz to 18 kHz (-6 dB), with 350 W RMS and 700 W peak power handling, 98 dB sensitivity and a maximum output of 129 dB SPL.

A polyurea-coated marine-plywood cabinet and fabric-backed steel-mesh grille provide an installation-focused enclosure. Integrated rigging points, optional horizontal or vertical brackets and 4-pin Euroblock/Phoenix input and thru wiring accommodate different placement requirements, with Quest QX or QXD amplifiers recommended for system amplification.

Key Features

  • Long-excursion woofer provides strong low-frequency presence for large-scale programme material
  • High sensitivity and output capability deliver efficient sound reinforcement across expansive venues
  • Selectable bi-amp and passive operation supports adaptable system design
  • Horn rotation aligns the controlled 80° x 50° pattern with the chosen cabinet orientation
  • White finish and smooth grille maintain a discreet profile in architectural spaces
  • Colour White
  • Impedance 8 ohm
  • Sensitivity 98 dB
  • Warranty 3 Years
  • PRODUCT TYPE INSTALLATION LOUDSPEAKER
  • COLOR WHITE
  • Brand QUEST
  • Config 2-WAY
  • Driver Size 15"
  • Power Type PASSIVE
  • Mount Type HORIZONTAL/VERTICAL MOUNTING
  • Dispersion Angle 80H X 50V
  • Input Connector 4-PIN EUROBLOCK/PHOENIX CONNECTOR
  • Peak Power (W) 700W
  • Weight (kg) 34.5 KG
  • HF Driver Size 1"
  • LF Driver Size 15"
  • Enclosure MARINE PLYWOOD WITH POLYUREA COATING
  • Max SPL (dB) 129 DB
  • Hertz 48-18000HZ (-6dB)
  • Max Wattage 350W
  • Unit Dimensions (mm) 680H x 425W x 416D
