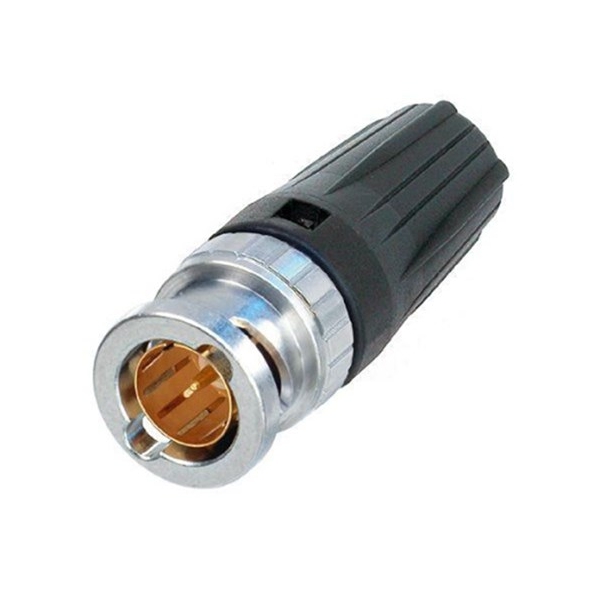

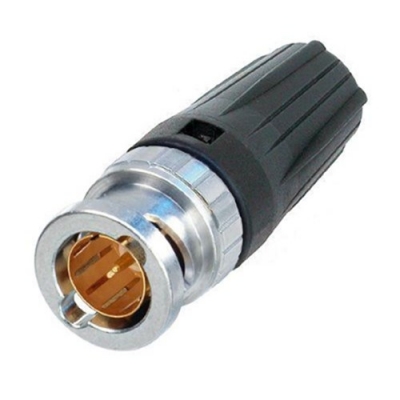

NEUTRIK NBNC75BYY11 Rear Twist 75 Ohm BNC Cable Connector Suits Canare L-5CFB

The NEUTRIK NBNC75BYY11 is a high-quality rearTWIST 75 ohm BNC male cable connector designed for broadcast, HDTV, and professional video applications where true impedance control and fast access matter. Built for high-density patching and recessed bulkhead environments, it uses Neutrik’s patented rearTWIST soft-touch boot to lock and unlock from the back, delivering easy handling, secure bayonet coupling, and reliable signal integrity for demanding HD workflows.

Ideal for SDI and high-frequency 75 ohm coax assemblies, it supports Canare L-5CFB, L-5CFW, and L-4.5CHWS cables with shield and jacket crimp technology that prevents exposed braid and improves cable retention. Precision Swiss-machined brass parts, PTFE insert, and a gold-plated center contact provide low contact resistance, excellent durability, and a long service life of over 1000 mating cycles for studios, OB trucks, AV racks, and install-grade patch panels.

Key Features

  • True 75 ohm BNC male rearTWIST connector for HDTV and HD video signal performance
  • Rear locking and unlocking via soft-touch boot for high density and recessed bulkhead access
  • Supports Canare L-5CFB L-5CFW and L-4.5CHWS coax with 8 mm cable outer diameter
  • Crimp termination with 1.6 mm square pin crimp and 8.23 mm hex shield crimp for secure assemblies
  • Swiss-machined brass body with Optalloy plating PTFE insert and gold plated center contact for durability and over 1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
