> >NEUTRIK NE8FDX-P6-W CAT6A CHASSIS CONNECTOR FEEDTHROUGH IP65 SEALING KIT
New NEUTRIK NE8FDX-P6-W CAT6A CHASSIS CONNECTOR FEEDTHROUGH IP65 SEALING KIT View larger

NEUTRIK

NEUTRIK NE8FDX-P6-W CAT6A CHASSIS CONNECTOR FEEDTHROUGH IP65 SEALING KIT

NEUNE8FDX-P6-W

NU-NE8FDX-P6-W

New product

Balcatta: 0
Geebung: 0

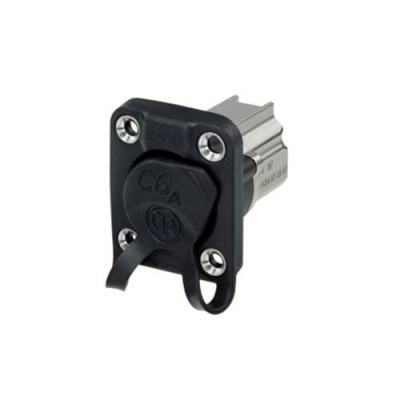

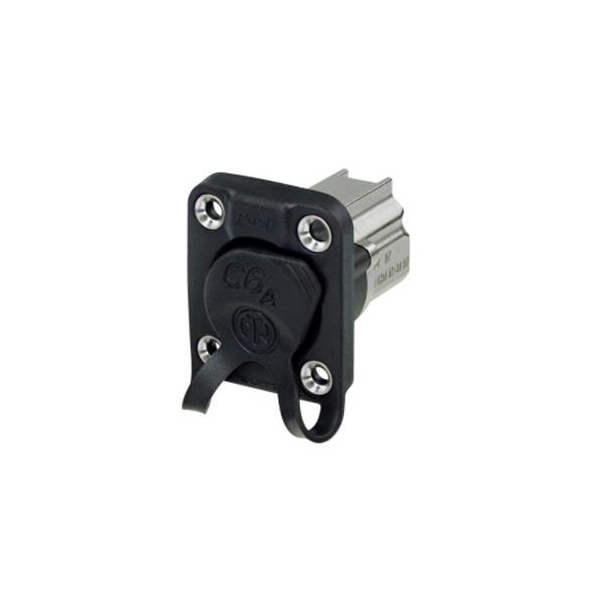

NEUTRIK NE8FDX-P6-W etherCON CAT6A Panel Connector Shielded Feedthrough - IP65 Sealing Kit

The NEUTRIK NE8FDX-P6-W is a rugged D-shape CAT6A shielded panel feedthrough connector designed for professional Ethernet panel I-O in touring, broadcast, AV, and industrial installations where reliability and environmental protection matter. Supporting 10 Gbit/s CAT6A component performance, it features a shielded system for high noise immunity and EMI protection, plus a rubber sealing gasket to deliver IP65 ingress protection when mated.

Ideal for stage boxes, wall plates, rack panels, and outdoor-capable network interfaces, it includes a proven latch-lock mechanism for secure connections and long service life over 1000 mating cycles. It also supports Power over Ethernet up to PoE Type 4 Class 8 (100W) per IEEE 802.3bt with rated voltage up to 57 V and 1.5 A per contact, and it is intermateable with the existing etherCON CAT5 range; note it does not intermate with NE8MC6-MO CAT6 cable connector and NKE6S cables.

Key Features

  • CAT6A component compliant feedthrough with 10 Gbit/s transmission for high-performance Ethernet panels
  • IP65 sealing via rubber gasket for dust and water protection in mated condition
  • Supports PoE Type 4 Class 8 up to 100W (IEEE 802.3bt) with 57 V rating and 1.5 A per contact
  • Shielded zinc diecast shell with black KTL coating and gold plated contacts for EMI resistance and durability
  • Front-mount D-shape design with rugged latch-lock and 1000+ mating cycles for touring and fixed install use
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK/SILVER
