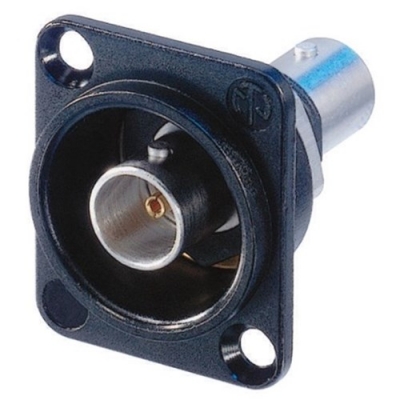

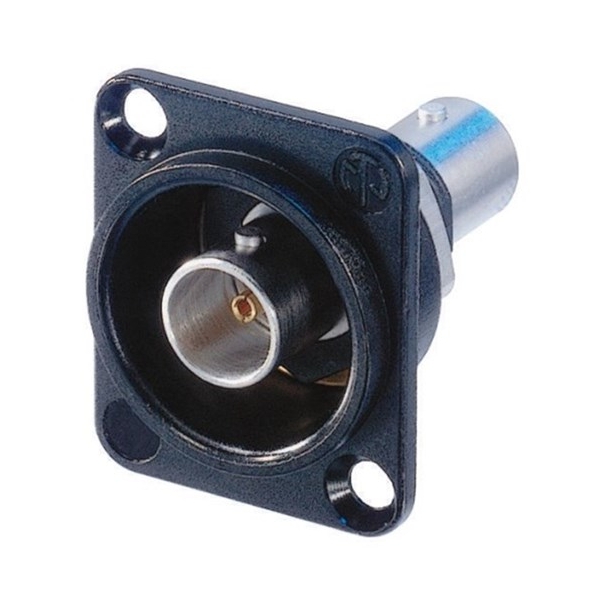

> >NEUTRIK NBB75DFIB FLUSH-MOUNT BNC / BNC: D-SIZE ISOLATED BLACK HOUSING
New NEUTRIK NBB75DFIB FLUSH-MOUNT BNC / BNC: D-SIZE ISOLATED BLACK HOUSING View larger

NEUTRIK

NEUTRIK NBB75DFIB FLUSH-MOUNT BNC / BNC: D-SIZE ISOLATED BLACK HOUSING

NEUNBB75DFIB

NU-NBB75DFIB

New product

Balcatta: 0
Geebung: 0

NEUTRIK NBB75DFIB Flush Mount BNC to BNC Feedthrough 75 Ohm Black D Size Isolated

The NEUTRIK NBB75DFIB is a high-quality 75 ohm BNC female to BNC female feedthrough chassis connector designed for clean flush mounting in professional video broadcast and AV infrastructure. Built into a rugged black D-shape housing, it delivers true 75 ohm performance for serial and digital HD signals and provides a recessed, protected interface for reliable long-term use in panels, racks, and wall plates.

Ideal for SDI HD video, AES EBU and other 75 ohm applications, it features an isolated panel mount to help prevent grounding issues and reduce common-mode influence when multiple connections share the same panel. With a machined brass connector body, PTFE insert, and gold plated cage type center contact for low resistance and strong shielding, it is a dependable choice for studios, OB trucks, stage racks, and fixed installations.

Key Features

  • True 75 ohm BNC female to female feedthrough for HD SDI video and high performance digital signals
  • Gold plated cage type center contact and closed contact design for excellent shielding and low contact resistance
  • Isolated front panel mount helps solve grounding problems and minimizes common-mode interference
  • Low contact resistance and high insulation performance with rated voltage under 50 V and dielectric strength 1.5 kVdc
  • Standard D-shape black housing enables flush mounting with recessed protection and long life over 1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK/SILVER
