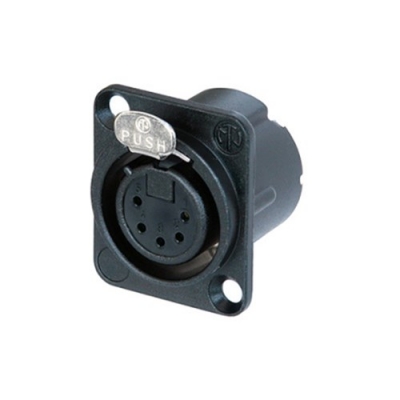

> >>>NEUTRIK NC5FD-LX-B FEMALE 5-PIN W SOLDER TERMINAL & LATCH WITH BLACK BODY AND GOLD PINS
New NEUTRIK NC5FD-LX-B FEMALE 5-PIN W SOLDER TERMINAL & LATCH WITH BLACK BODY AND GOLD PINS View larger

NEUTRIK

NEUTRIK NC5FD-LX-B FEMALE 5-PIN W SOLDER TERMINAL & LATCH WITH BLACK BODY AND GOLD PINS

NEUNC5FD-LX-B

NU-NC5FD-LX-B

New product

Balcatta: 0
Geebung: 0

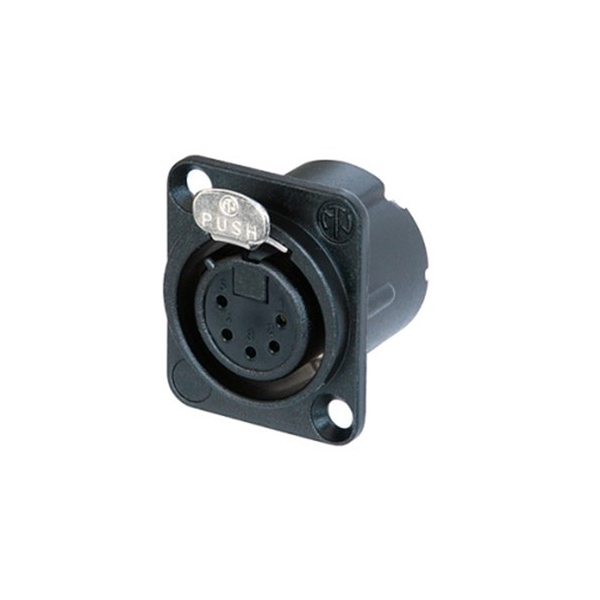

NEUTRIK NC5FD-LX-B 5-Pin Female XLR Chassis Receptacle Black Metal Housing Gold Contacts

The NEUTRIK NC5FD-LX-B is a high-quality 5-pole female XLR chassis receptacle designed for professional audio, lighting control, and multi-channel signal applications requiring secure panel mounting and excellent shielding. Featuring a compact DLX all-metal D-size housing with an ingenious duplex ground contact, it delivers outstanding RF protection and electromagnetic shielding, while gold-plated brass contacts with solder cups and a solder barrier help ensure clean termination and reliable long-term performance.

Ideal for stage boxes, dimmer racks, patch panels, broadcast equipment, and fixed installations, it complies with IEC 61076-2-103 and offers UL 94 V-0 flammability performance with IEC 68-2-20 solderability compliance for dependable manufacturing. A latch-lock mechanism provides a positive, vibration-resistant connection, and the optional pin 1 to chassis ground link supports best-practice grounding schemes, making it a robust choice for demanding professional environments.

Key Features

  • 5-pin female XLR chassis receptacle with D-style mounting and latch lock for secure panel connections
  • Black KTL-coated zinc diecast metal housing for superior RF protection and electromagnetic shielding
  • Gold-plated brass contacts with solder cups plus solder barrier to prevent solder wicking into the mating area
  • IEC 61076-2-103 compliant with UL 94 V-0 flammability rating and IP40 protection class
  • 7.5 A per contact rating and supports up to 1.0 mm² 18 AWG wiring for professional installation builds
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
