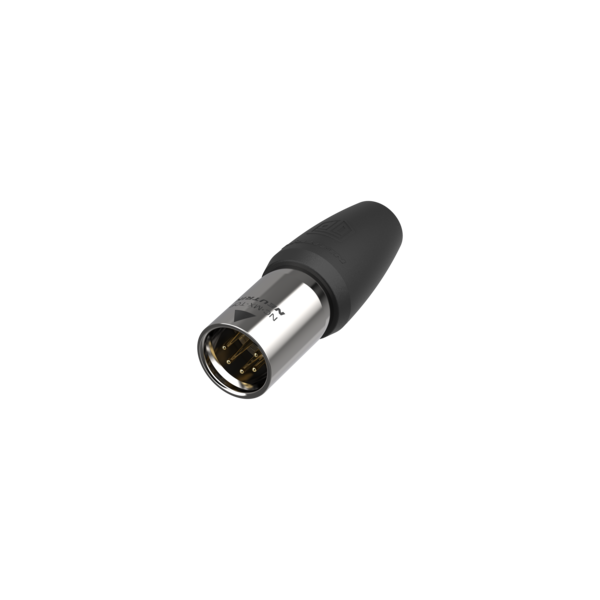

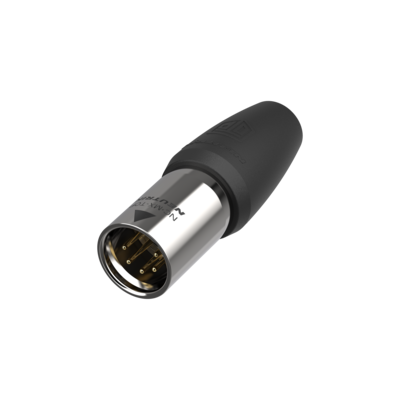

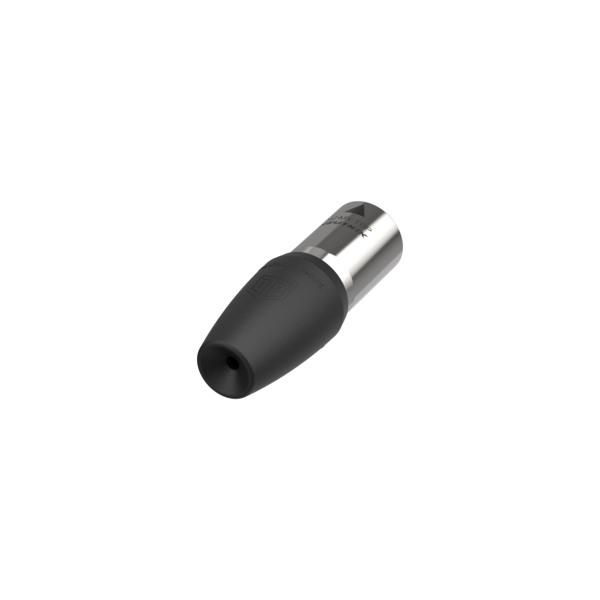

> >>>NEUTRIK NC5MX1-TOP XLR MALE 5 POLE CABLE CONNECTOR TOP IP65 GOLD CONTACTS UV RESISTANT
New NEUTRIK NC5MX1-TOP XLR MALE 5 POLE CABLE CONNECTOR TOP IP65 GOLD CONTACTS UV RESISTANT View larger

NEUTRIK

NEUTRIK NC5MX1-TOP XLR MALE 5 POLE CABLE CONNECTOR TOP IP65 GOLD CONTACTS UV RESISTANT

NEUNC5MX1-TOP

NC5MX1-TOP

New product

Balcatta: 0
Geebung: 0

NEUNC5MX1-TOP Neutrik NC5MX1 TOP XLR Male 5 Pole Cable Connector IP65 Gold Contacts UV Resistant - Single

The NEUNC5MX1-TOP is a high-quality 5 pole XLR cable connector designed for rugged outdoor audio connectivity in live sound, broadcast, and install applications. Built to the True Outdoor Protection standard, it features IP65 weather sealing when mated, gold-plated contacts, and a stainless-steel shell with UV-resistant bushing to ensure low-loss signal transfer and long-term reliability in harsh environments.

Ideal for multi-channel control and audio lines on stage and in fixed rigs, it complies with IEC 61076-2-103 and UL approvals and offers a secure latch lock, solder terminations for up to 18 AWG conductors, support for 5.0–8.0 mm cable OD, and a -30 °C to +80 °C operating range, making it suitable for professional touring and permanent outdoor installations.

Key Features

  • Rated 7.5 A per contact with ≤3 mΩ contact resistance and 1.5 kVdc dielectric strength
  • Gold-over-nickel contacts with stainless-steel shell and UV-resistant rubber bushing
  • Secure latch lock and >1000 mating cycles for dependable field use
  • IP65 weather protection when mated plus UL and UL50E Type 4 considerations IEC 61076-2-103
  • Fits 5.0–8.0 mm cable OD with solder contacts for fast, robust assembly
  • PRODUCT TYPE XLR RECEPTACLE
  • COLOR BLACK
