> >>>NEUTRIK NC4MXX-B MALE 4-PIN LINE CONNECTOR BLACK WITH GOLD PINS

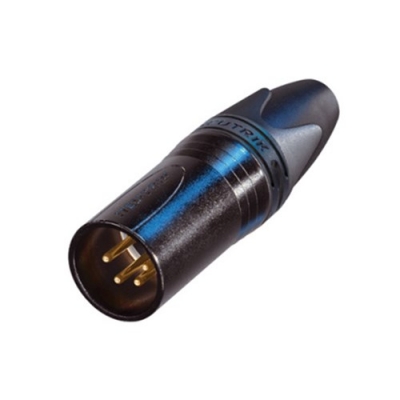

New NEUTRIK NC4MXX-B MALE 4-PIN LINE CONNECTOR BLACK WITH GOLD PINS View larger

NEUTRIK

NEUTRIK NC4MXX-B MALE 4-PIN LINE CONNECTOR BLACK WITH GOLD PINS

NEUNC4MXX-B

NU-NC4MXX-B

New product

Balcatta: 0
Geebung: 0

NEUTRIK NC4MXX-B XLR Male Cable Connector Black Housing 4-Pole

The NEUTRIK NC4MXX-B is a high-quality 4-pole male XLR cable connector designed for dependable professional audio, lighting, and industrial signal connections. Built as the next-generation XX series standard, it features a rugged black KTL-coated zinc diecast shell and durable brass contacts with gold contact plating to ensure excellent contact integrity, low resistance performance, and long-term reliability.

Ideal for stage, studio, broadcast, touring, and fixed installation cabling, it complies with IEC 61076-2-103 and meets UL 94 V-0 flammability requirements while offering IEC 68-2-20 solderability compliance for consistent assembly. With an improved locking recess for added durability, a chuck-style strain relief for higher pull-out force, and a polyurethane boot gland to protect against cable bending stress, it’s a robust choice for demanding professional environments.

Key Features

  • 4-pole male XLR line cable connector with solder contacts and secure latch lock
  • Black KTL-coated zinc diecast shell with gold-plated brass contacts for reliable conductivity
  • Improved locking recess and protected internal thread for enhanced durability in daily use
  • 10 A per contact rated current and < 50 V rating with 1.5 kVdc dielectric strength and IP40 protection
  • Supports 3.5-8.0 mm cable O.D. and up to 1.5 mm² 16 AWG wiring with >1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK
