> >>>NEUTRIK NC4FRX 4-PIN RIGHT ANGLE FEMALE
New NEUTRIK NC4FRX 4-PIN RIGHT ANGLE FEMALE View larger

NEUTRIK

NEUTRIK NC4FRX 4-PIN RIGHT ANGLE FEMALE

NEUNC4FRX

NU-NC4FRX

New product

Balcatta: 0
Geebung: 0

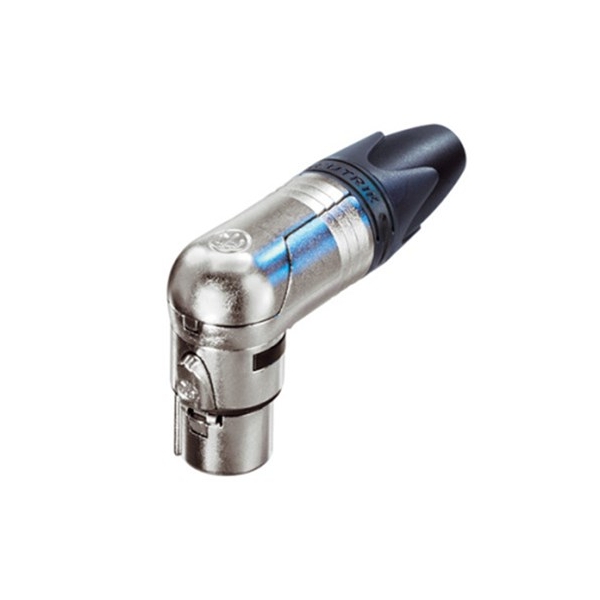

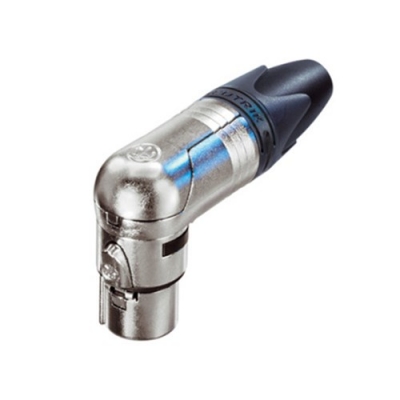

NEUTRIK NC4FRX XLR Right Angle Female Cable Connector Nickel Housing Silver Contacts 4-Pole

The NEUTRIK NC4FRX is a high-quality 4-pole right-angle female XLR cable connector designed for reliable professional audio, lighting, and industrial signal connections where tight cable routing is required. Featuring an extra-slim right-angle profile with five selectable cable outlet positions, it uses a nickel-plated zinc diecast shell and 2 µm silver-plated brass contacts with a unique cage-style female contact design to ensure low contact resistance, excellent contact integrity, and long service life.

Ideal for stage, studio, broadcast, touring, and installation use, it complies with IEC 61076-2-103 and meets UL 94 V-0 flammability requirements while offering IEC 68-2-20 solderability compliance for dependable assembly. With a solid metal latch lock, improved chuck-type strain relief for higher pull-out force, additional ground spring contacts for better shell continuity, and a polyurethane boot gland for enhanced bend protection, it’s built for secure, durable performance in demanding environments.

Key Features

  • 4-pole right-angle female XLR cable connector with solder contacts and latch lock
  • Nickel-plated zinc diecast shell with 2 µm silver-plated brass contacts for low resistance
  • Extra-slim RX right-angle body with 5 selectable cable outlet positions for flexible routing
  • Rated 10 A per contact and < 50 V with 1.5 kVdc dielectric strength and IP40 protection class
  • Supports 3.5-8.0 mm cable O.D. and up to 1.5 mm² 16 AWG wire size with >1000 mating cycles
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK/SILVER
