> >>>NEUTRIK NLT4MXX-BAG SPEAKON 4 POLE CABLE CONNECTOR BLACK SILVER CONTACTS
New NEUTRIK NLT4MXX-BAG SPEAKON 4 POLE CABLE CONNECTOR BLACK SILVER CONTACTS View larger

NEUTRIK

NEUTRIK NLT4MXX-BAG SPEAKON 4 POLE CABLE CONNECTOR BLACK SILVER CONTACTS

NEUNLT4MXX-BAG

NU-NLT4MXX-BAG

New product

Balcatta: 0
Geebung: 0

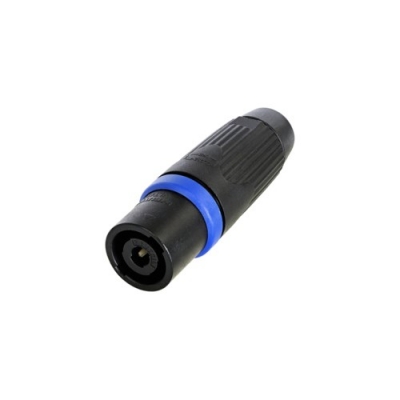

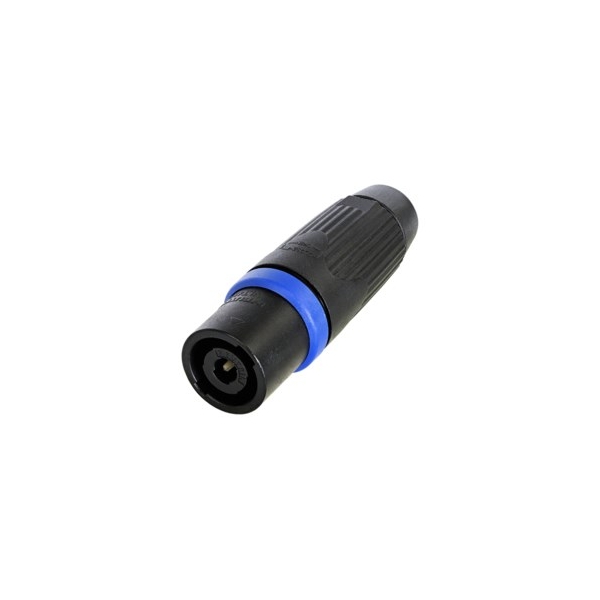

NEUTRIK NLT4MXX-BAG speakON STXX 4 Pole Male Cable Connector Black Metal Housing

The NEUTRIK NLT4MXX-BAG is a high-quality 4 pole male speakON cable connector designed for heavy-duty amplifier-to-loudspeaker connections in professional audio and touring rigs. Built for cable O.D. 9-16 mm and rated 30 A rms continuous per contact at 250 V ac, it features an extremely rugged black chrome plated zinc diecast shell with a glass reinforced UL 94 V-0 insert to ensure dependable performance in harsh and demanding environments.

Ideal for stage, rental, and installation speaker cabling, it is IEC 61984 certified and compliant with IEC 62368-1, and the built-in weatherproof gasket delivers IP54 protection in mated condition for added reliability, making it suitable for pro touring, live sound, and other rugged field applications.

Key Features

  • 4 pole male speakON cable connector rated 30 A rms per contact and 250 V ac for high-current loudspeaker connections
  • All-metal black chrome plated zinc diecast housing with copper alloy contacts and silver plated contact surfaces for robust conductivity
  • Precise Quick Lock system with chuck type strain relief for secure, vibration-resistant cable retention
  • IEC 61984 certified and IEC 62368-1 compliant with 2.8 kVac dielectric strength and <2 mΩ contact resistance
  • Supports up to 6 mm² (AWG 10) solder termination and IP54 protection in mated condition for tough touring environments
  • PRODUCT TYPE CONNECTORS
  • COLOR BLACK/BLUE
