Dante Audio Network Interface for Audac Amplifier View larger

Dante Audio Network Interface for Audac Amplifier


New product

Dante Audio Network Interface for Audac Amplifier

More details

Wesco Electrics (1966) East Perth 9325 3218 http://www.wesco.com.au/

The ANI44 is a Dante audio network interface for installation into WaveDynamics™ series amplifiers with four input and four output channels. The installation of this optional module allows these amplifiers to be integrated into any DANTE enabled AV network and flawlessly transfer digital audio with any compatible product on the market, ranging from music sources to microphone systems, mixers, and many more.

A truly plug & play solution is created when linking multiple DANTE enabled devices with each other on a standard IP network. It offers self-configuring solutions by using DHCP configuration, while the connection can be made to any existinig 100 Mbit or 1 Gbit network infrastructure.

Bidirectional signal transmissions with a sampling frequency of 48 kHz and a bit depth of 24 bit are simultaneously possible on all in and output channels, while guaranteeing an incredibly low latency with a maximum up to 5 ms. (depending of the network occupation).

The network connection is implemented using an Ethercon compatible connector, allowing connection using standard RJ45 or ruggedized Ethercon connections in professional applications.

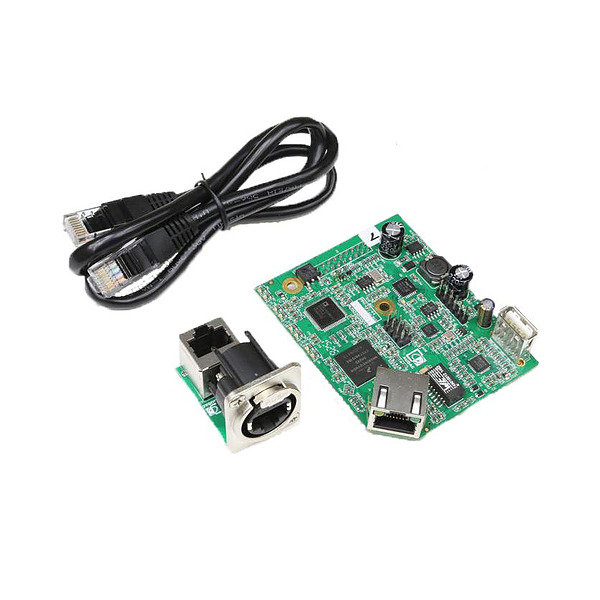

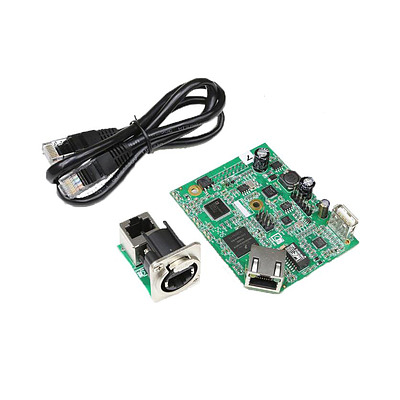

The ANI44 comes delivered as an installation kit, including all required accessories for integration into the amplifier chassis. Installation shall be performed by qualified technicians.


  •  Implements in WaveDynamics™ series amplifiers
  • Compatible with any DANTE™ enabled product
  • 4 inputs and 4 outputs
  • 48 Khz - 24 bit audio transfer
  • Incredibly low latency (2 ~ 5 ms)
  • Works with standard 100 Mbit or 1 Gbit networks
  • True plug & play solution (DHCP)
  • Automatic device discovery
  • Easy installation
  • Warranty 2 Years
  • Weight 0.090 Kg
