6" Ceiling Speaker - 75 Watt

QUEST MXC601

New product

6" Ceiling Speaker - 75 Watt

More details

Advanced Production Engineering Claremont 0487 465 597
Kosmic Osborne Park 9204 7577 www.kosmic.com.au
Broome TV & Audio Solutions Broome 9192 8656 www.broometvsolutions.com.au
Concept Audio Visual West Perth 9429 4333 www.conceptav.com.au

The MXC601 is designed to be a ceiling mount version of the MX wall speaker series.

The MX series is a system of audio building blocks that allows architects and venue designers to create a seamless full range audio. The MXC601 can be integrated as part of an MX601 installation and give the same sonic performance in a series or parallel wiring to the MX601 wall speakers.

The MXC601 can give extended full range audio coverage when the compact MX10S sub bass is added.

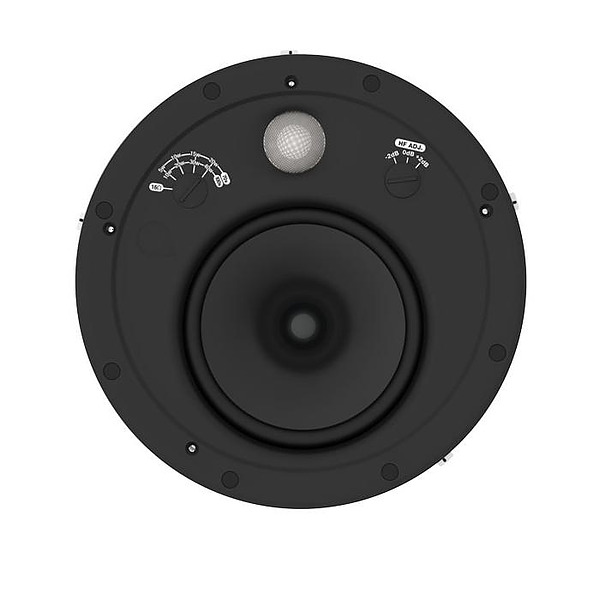

The MXC601 can be wired as a 16Ω low impedance speaker or a 70/100 volt installation with selectable wattage tapings.As a 16Ω loudspeaker up to four units can be connected to achieve a 4Ω load to an amplifier. This allows for up to eight speakers to be connected to a stereo amplifier with the result being a very high fidelity distributed system. Multiple 70/100 volt tapings and also an EQ contour can be selected from the front baffle of an installed speaker. This allows for fine tuning after installation if desired.

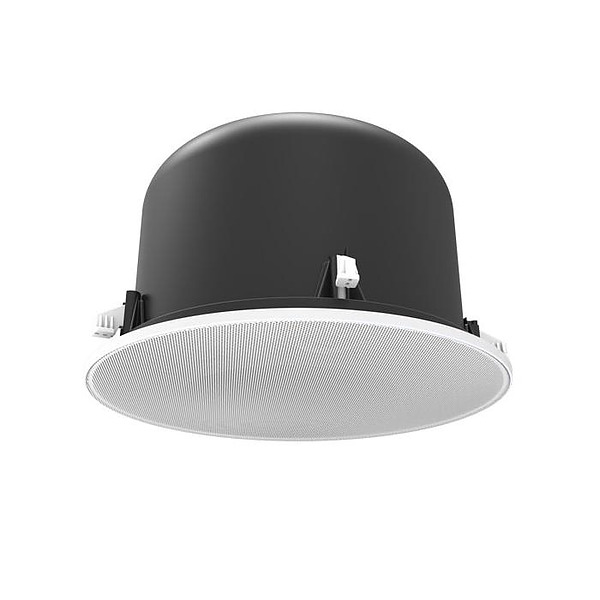

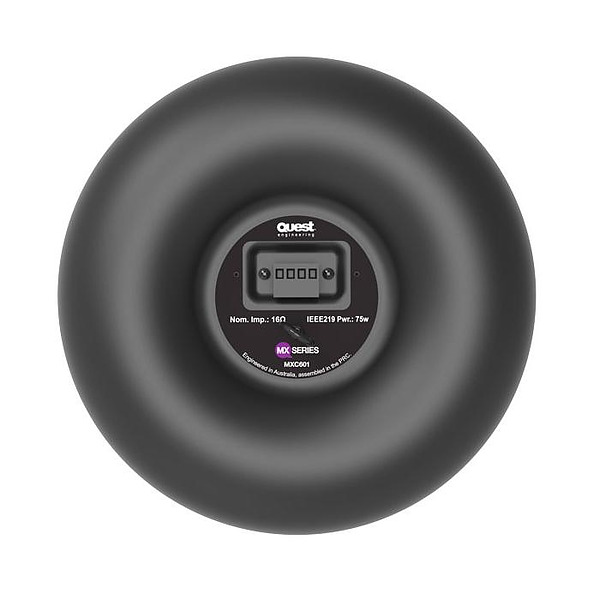

The steel fire resistant casing is acoustically damped and contains a suspension ring on the top of the casing for hanging installation or strain relief. A ceiling support ring and tile rails can be used for extra support as an altenative to the suspension ring and available as an optional extra.

The drivers and internal electronics are identical to the MX601.

Like the MX601, The MXC contains a completely new type of woofer design. Quest has designed a new type of driver and incorporated a passive resonance circuit that simulates the action of a reflex port but with a more extended frequency range. The lightweight of the cabinet and components mean that the weight stress on ceiling tiles is low and reinforcing bars are not required.

  • Colour White
  • Dimensions (H x W x D) 276 x 170mm
  • Frequency Response 70Hz – 20kHz ±2dB
  • Impedance 16 Ohm or 100 V
  • Maximum SPL 110 dB
  • Power Rating 75 watt (RMS) 100 watt (Peak)
  • Sensitivity 91 db
  • Transformer Taps 10w/20w/30w/40w
  • Warranty 2 Years
  • Weight 2.9 kg
